Ultra-Compact Snap-in Series

Compact design with improved capacitance per volume

 Intro Pic

TDK‘s range of ultra-compact snap-in series is developed with more compact designs with higher capacitance per volume. This innovative and ultra-compact series is setting new standards for smaller end systems and expands the range of applications.


Benefits

 Small

Ultra-compact design

  • Maximized energy density among the voltage range with
    • diameters of just 22 - 35 mm and
    • lengths up to 100 mm
  • Voltage range 400 to 500 V DC
 Powerful

Higher performance

  • 20% higher capacitance compared to predecessors
  • High energy density
  • High ripple current capability
 Surface

High surface increase

  • Inhouse developed anode foils with long-life oxide
 Robust

High reliability

  • Useful life up to 5000 h/+105 °C
  • Overload protection by pressure relief device on the base



New addition of ultra-compact series

 B43657 Pic

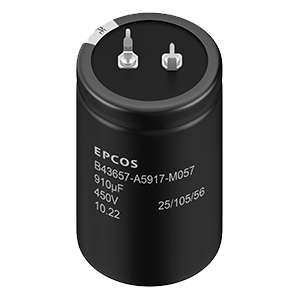

B43657 Series

  • Rated voltage: 450 to 475 V
  • Rated capacitance: 120 to 2060 µF
  • Ripple current capability: up to 9.4
  • Rated lifetime: >2000 h at +105 °C
  • Largest capacitance and highest ripple current
 B43658 Pic

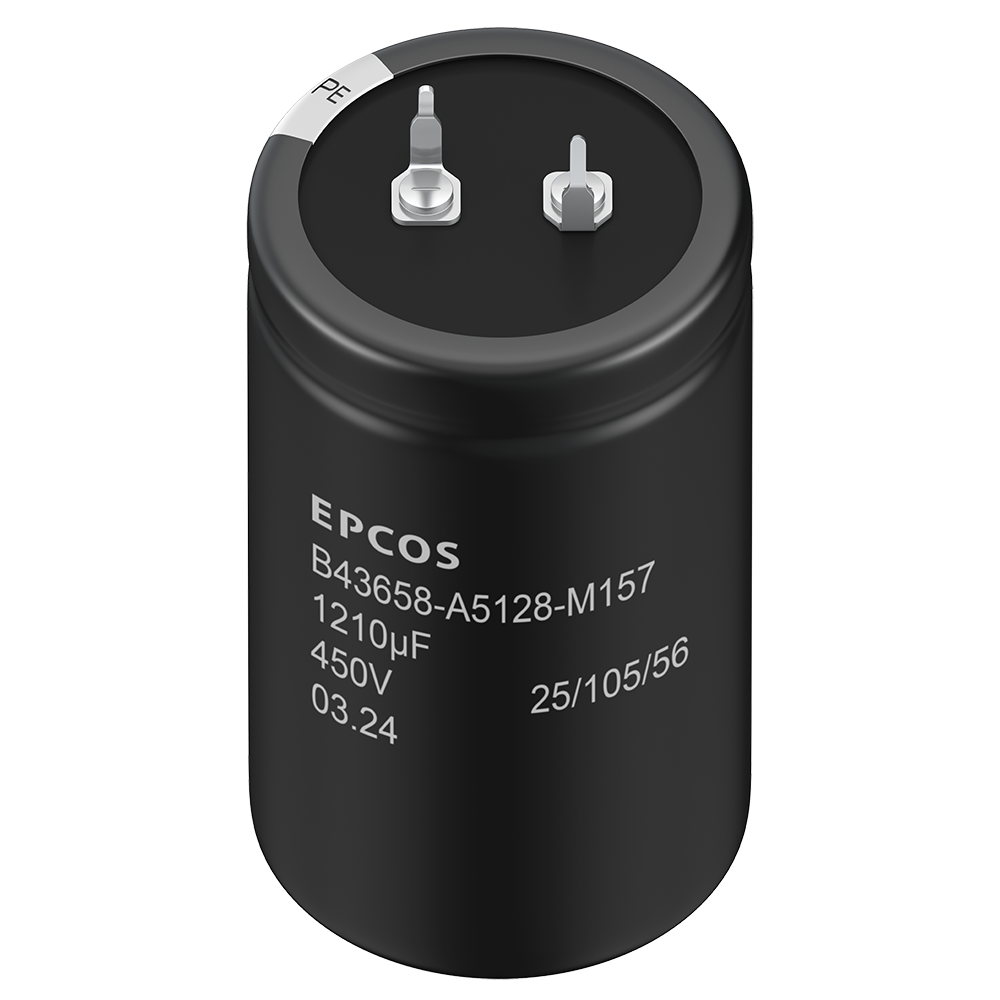

B43658 Series

  • Rated voltage: 450 to 475 V
  • Rated capacitance: 150 to 1210 µF
  • Ripple current capability: up to 8.42 A
  • Rated lifetime: >3000 h at +105 °C
  • Long-life components
 B43659 Pic

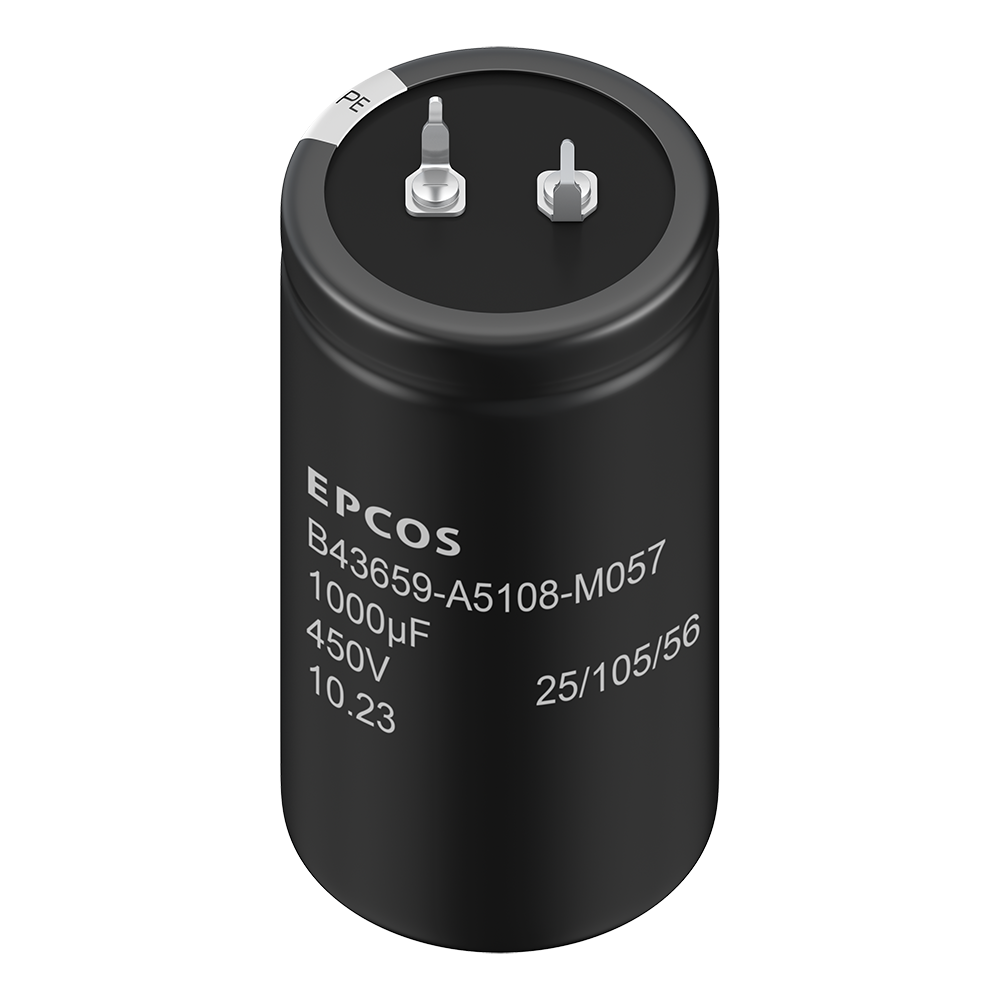

B43659 Series

  • Rated voltage: 450 V
  • Rated capacitance: 140 to 1030 µF
  • Ripple current capability: up to 7.74 A
  • Rated lifetime: >2000 h at +105 °C
  • Super compact


Applications

 Power supplies data center
 Power supplies telekom
Drives
UPS
Solar
 Medical

Get data sheets and search

PDF Upper operating temperature (°C) Rated useful life (h) Rated capacitance (µF) Rated voltage (V DC) Type
new
105 >3000 150 - 1210 450, 475 B43658
new
105 >2000 120 - 2060 450, 475 B43657
new
105 >2000 140 - 1030 450 B43659

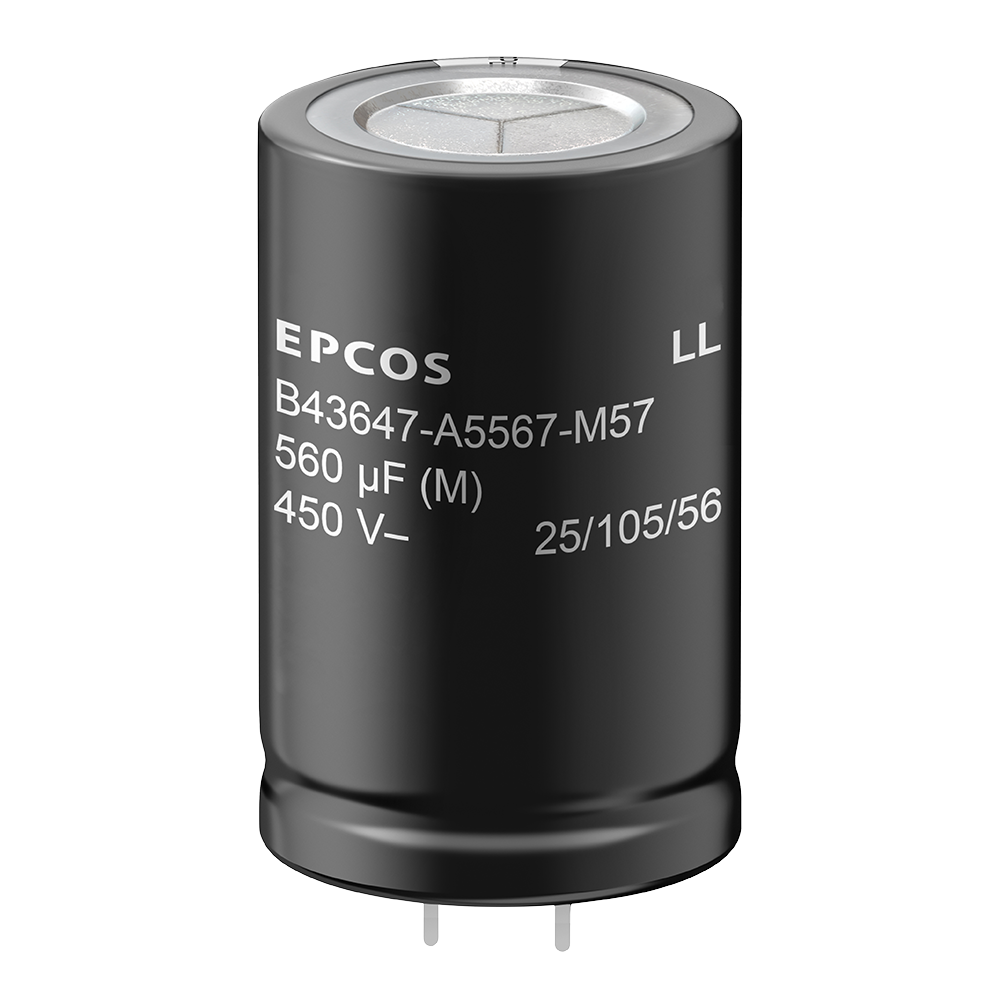

105 >2000 120 - 1000 450 B43647

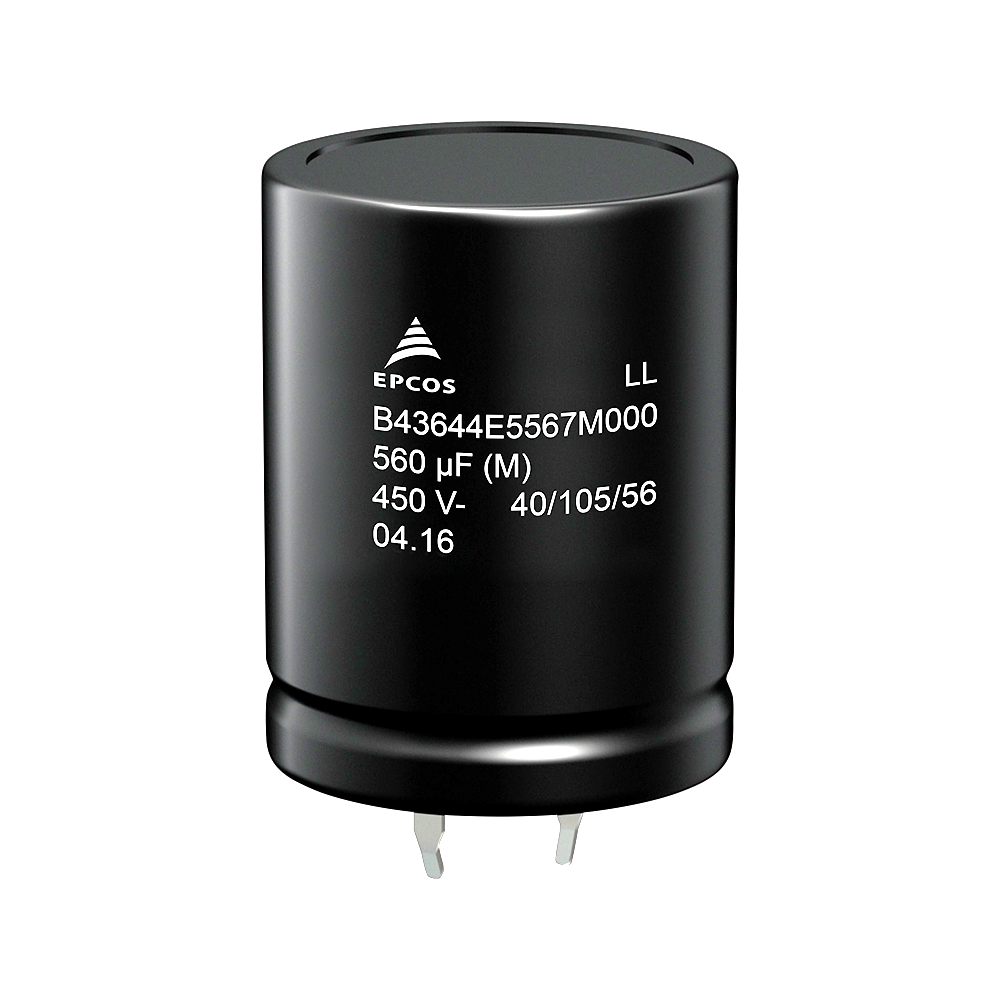

105 >5000 68-2700 200-450 B43644
105 >5000 47 - 2700 200 - 500 B43644
105 >3000 100 - 3300 200 - 450 B43643

In order to download up to 20 files together as zip, please mark them with the check box. To start the download, please click the Download button at the end of the list.
