TDK offers rugged SMT NTC sensor for surface temperatures
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3182730/ratio4x3/210/158/31ba0a048b7916f794012c387f018c96/65F90677EAF5ABD327FC0D0F021D43F3/bild-teaser-grau-en.png","992":"/resource/image/3182730/ratio4x3/992/744/31ba0a048b7916f794012c387f018c96/76047194AB2AB1D035D6EC2D1AE40FFF/bild-teaser-grau-en.png","333":"/resource/image/3182730/ratio4x3/333/250/31ba0a048b7916f794012c387f018c96/7ECCCC6576F33F65432CB485B0B95EF0/bild-teaser-grau-en.png","445":"/resource/image/3182730/ratio4x3/445/334/31ba0a048b7916f794012c387f018c96/EFE6EB29FCEE23CF3E72D662DB2D4CBA/bild-teaser-grau-en.png","290":"/resource/image/3182730/ratio4x3/290/218/31ba0a048b7916f794012c387f018c96/66286165E905DF7B9ADE30AF60F2D32B/bild-teaser-grau-en.png"}})

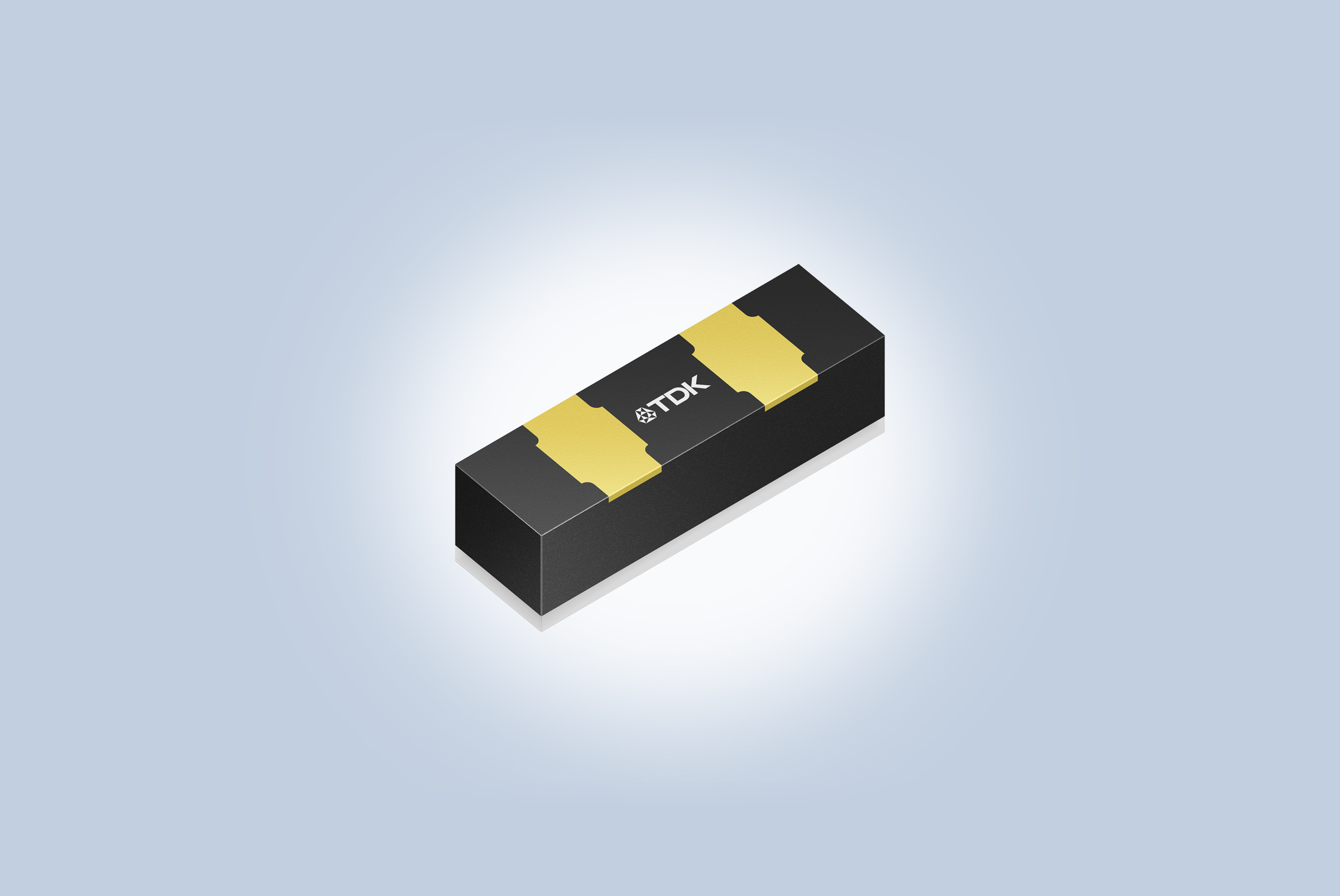

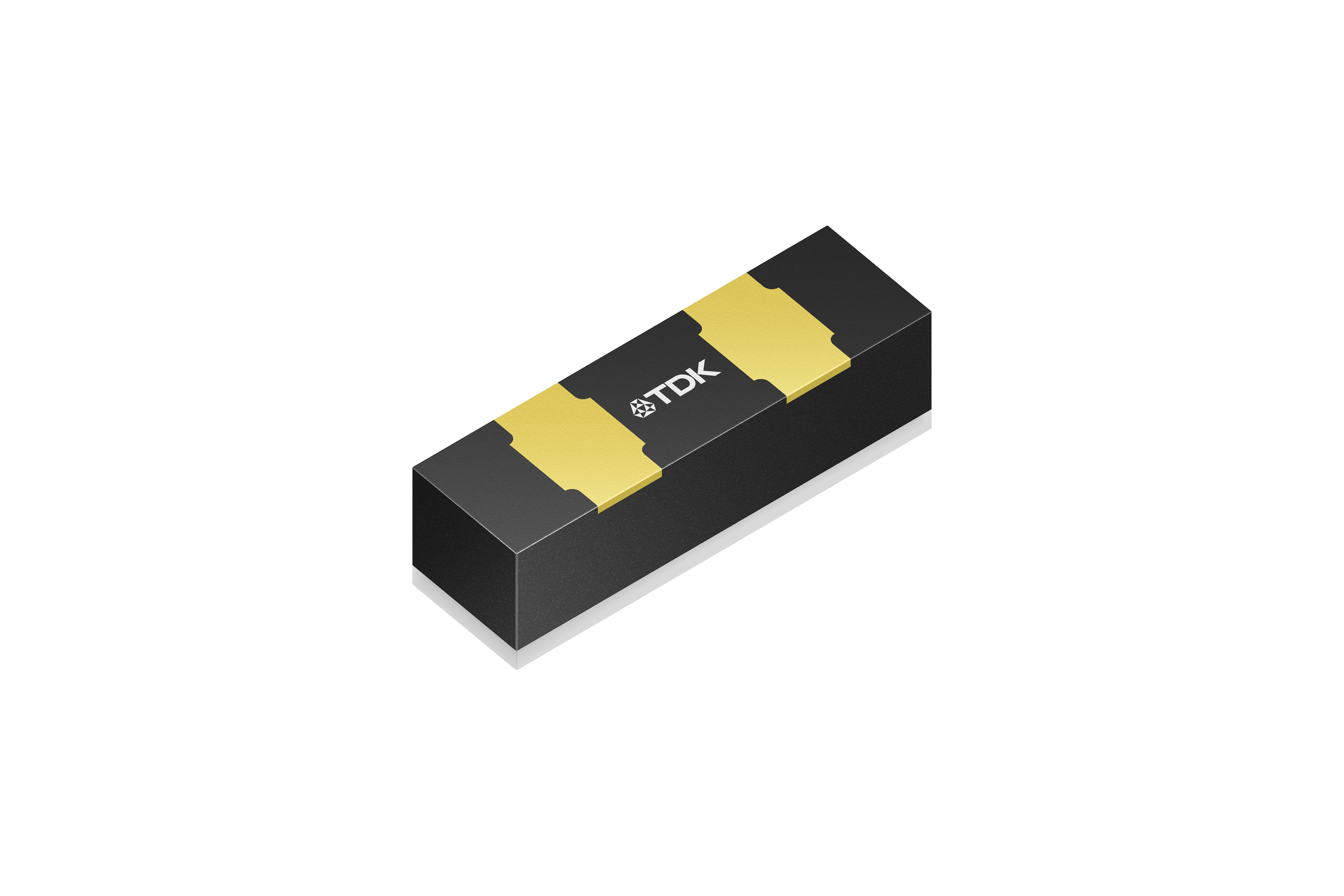

TDK Corporation (TSE:6762) presents the new T850 SMT NTC sensor (B57850T0103*) for measuring surface temperatures. It combines high humidity resistance with fast response time due to excellent thermal coupling to the target. The sensor is suitable for harsh environments with temperatures from -40 °C to +150 °C and is waterproof for up to 500 hours. In addition, the sensor, with its aluminum oxide ceramic surface, offers a high dielectric strength of 2500 V AC for 60 s.
The robust, lead- and halogen-free NTC sensor has dimensions of 10 x 3 x 3 mm (L x W x H). At 25 °C, the model B57850T0103F000 has a nominal resistance of 10,000 Ω with a tolerance of 1%, while the model B57850T0103G000 has a tolerance of 2%. The connecting electrodes are made of phosphor bronze and can be contacted by piston soldering, laser soldering, micro-resistance welding, or TIG welding.
Typical applications are the measurement of surface temperatures in heating and building technology, for example, heat sinks of power modules as well as temperature monitoring of industrial processes.
Features & Applications
Main applications
- Heating and building services engineering
- Heat sinks of power modules
- Temperature monitoring of industrial processes
Main features and benefits
- High dielectric strength of 2500 V AC for 60 s
- High moisture resistance (waterproof up to 500 hours)
- Wide measuring range from -40 °C to +150 °C
- Lead and halogen-free
Further information on the products can be found under Further information on the products can be found at https://www.tdk-electronics.tdk.com/en/ntc_elements
