TDK offers DC link capacitors for +105 °C
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3225252/ratio4x3/210/158/5776a29494d01cd487fbf56e9be7f6c9/6C7669794957D960002CCF085CD4E045/bild-teaser-grau-en.png","992":"/resource/image/3225252/ratio4x3/992/744/5776a29494d01cd487fbf56e9be7f6c9/A46DB4002553E47FC5B44B1D7F8ECF28/bild-teaser-grau-en.png","333":"/resource/image/3225252/ratio4x3/333/250/5776a29494d01cd487fbf56e9be7f6c9/1B7CDC7C1DC3DE1615642B828F2992D9/bild-teaser-grau-en.png","445":"/resource/image/3225252/ratio4x3/445/334/5776a29494d01cd487fbf56e9be7f6c9/DD22680B3A37245340B051CFEDCF5E17/bild-teaser-grau-en.png","290":"/resource/image/3225252/ratio4x3/290/218/5776a29494d01cd487fbf56e9be7f6c9/2ACF213B7539818FF66AEFD30C89D45B/bild-teaser-grau-en.png"}})

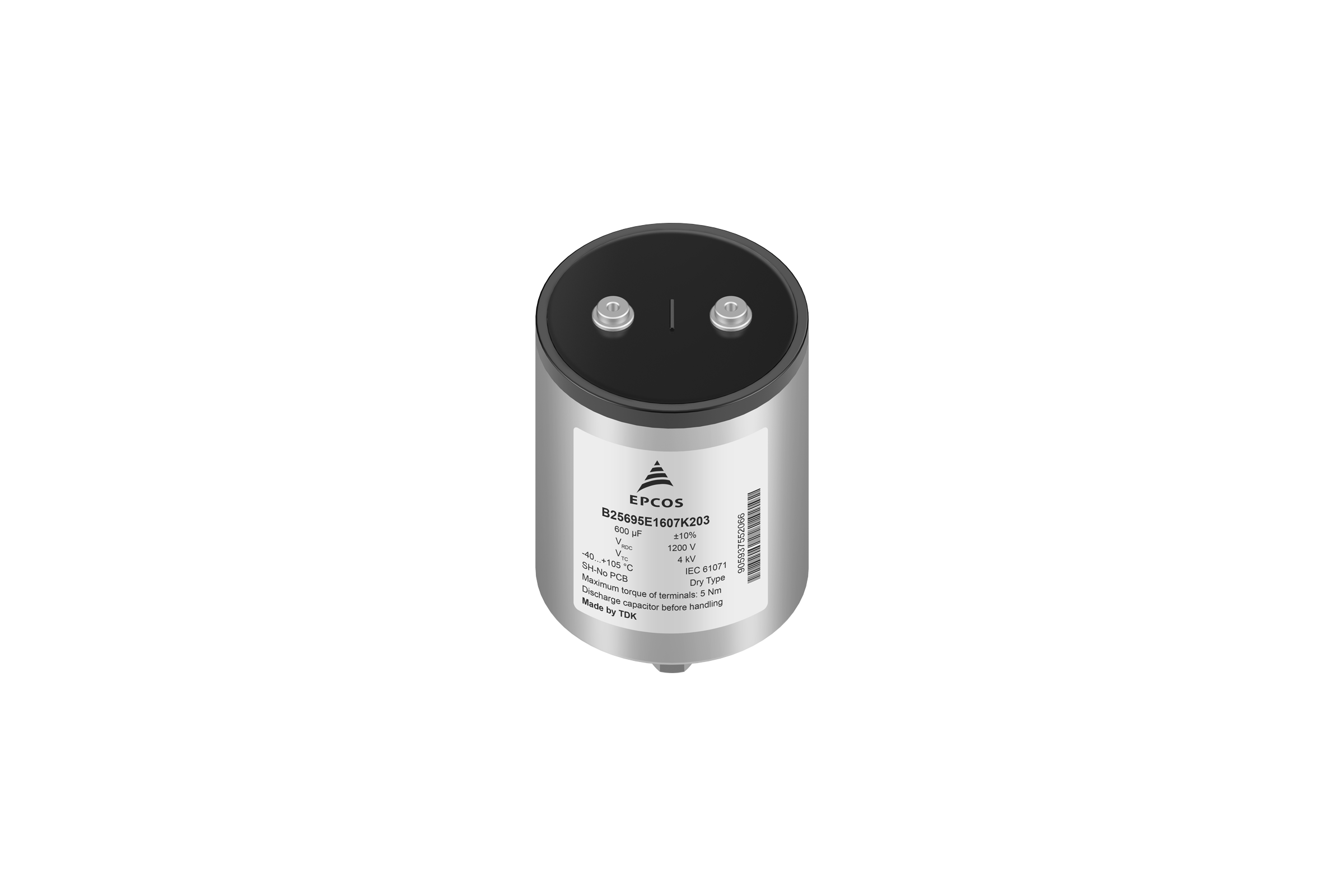

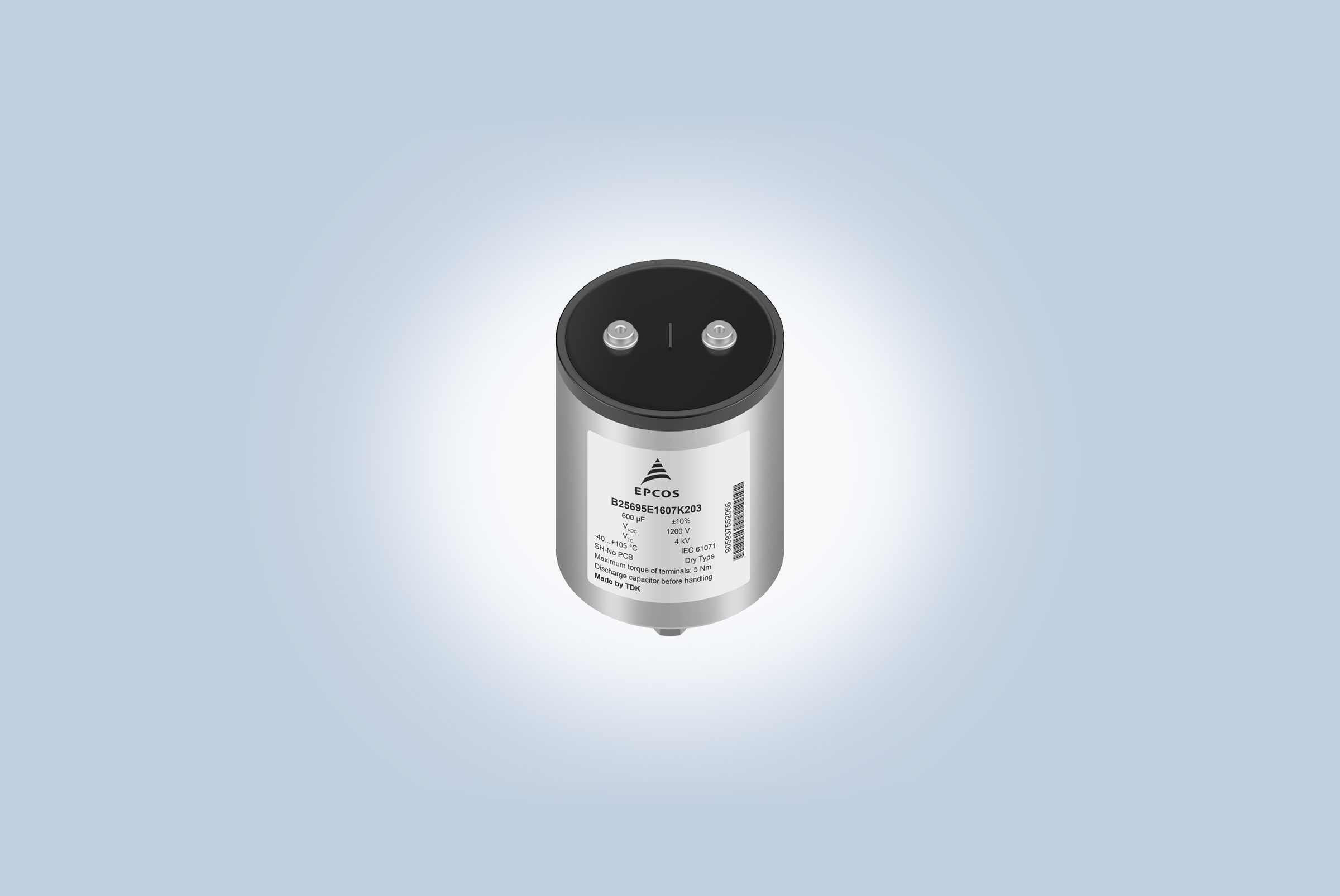

TDK Corporation (TSE:6762) presents a new series of EPCOS power capacitors for DC link applications designed for an operating temperature of up to +105 °C. The components with the ordering code B25695E can operate at rated DC voltages from 700 V to 1300 V (voltage derating necessary from +85 °C). The ESR ranges from 1.0 mΩ to 2.7 mΩ, resulting in a current capability of up to 110 A at +70 °C, depending on the model (current derating necessary at higher temperatures). However, the film capacitors can repetitively withstand current peaks of up to 15.8 kA. At the rated voltage and +75 °C, their service life is 120,000 h – up to 35% more than the standard version
The cylindrical cases of the RoHS-compatible capacitors with diameters of 85 mm or 116 mm are aluminum and have a synthetic resin lid. The metalized polypropylene film is encapsulated with a dry epoxy resin. M6 screw terminals ensure a secure electrical connection and an M12 threaded bolt on the bottom side provides a secure mechanical connection.
Typical applications are DC link circuits in converters in renewable energies (photovoltaics, wind power), in rolling stock (train, subway, streetcar), and industrial drives.
Features & Applications
Main applications
- DC links for renewable energies (photovoltaics, wind power)
- DC links in rolling stock (trains, subways, streetcars)
- DC links for industrial drives
Main features and benefits
- Operating temperature up to +105 °C
- Low dissipation factor
- Overvoltage resistant (130% of the rated voltage every day for 1 minute)
Further information on the products can be found at Product catalog: Power Capacitors for DC link | TDK Electronics - TDK Europe
