Power Capacitors for DC applications

In the case of Power Capacitors for DC Applications TDK offers different technology products depending on the application such as for standard ones, e-mobility (low LSI/ULSI HF), harsh environment (hermetically sealed) or for high partial discharge applications in power converters (resin top).


Ranges of operation

Low LSI / ULSI HF
Metal top
Resin top
Standard
Rated Capacitance (µF)
Low LSI / ULSI HF
Metal top
Resin top
Standard
Voltage (V DC)

Feature comparison

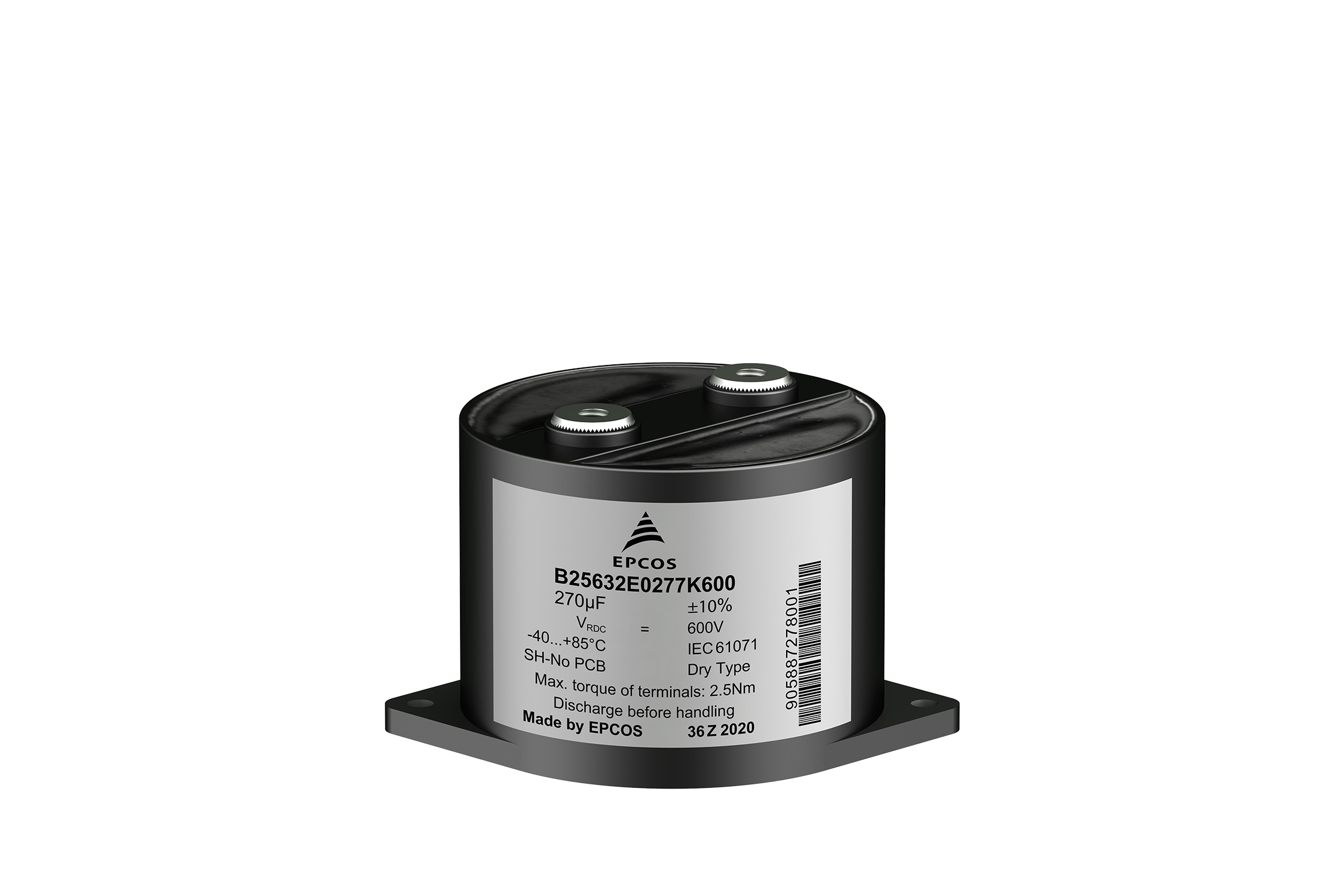

B2563*
Low LSI / ULSI HF

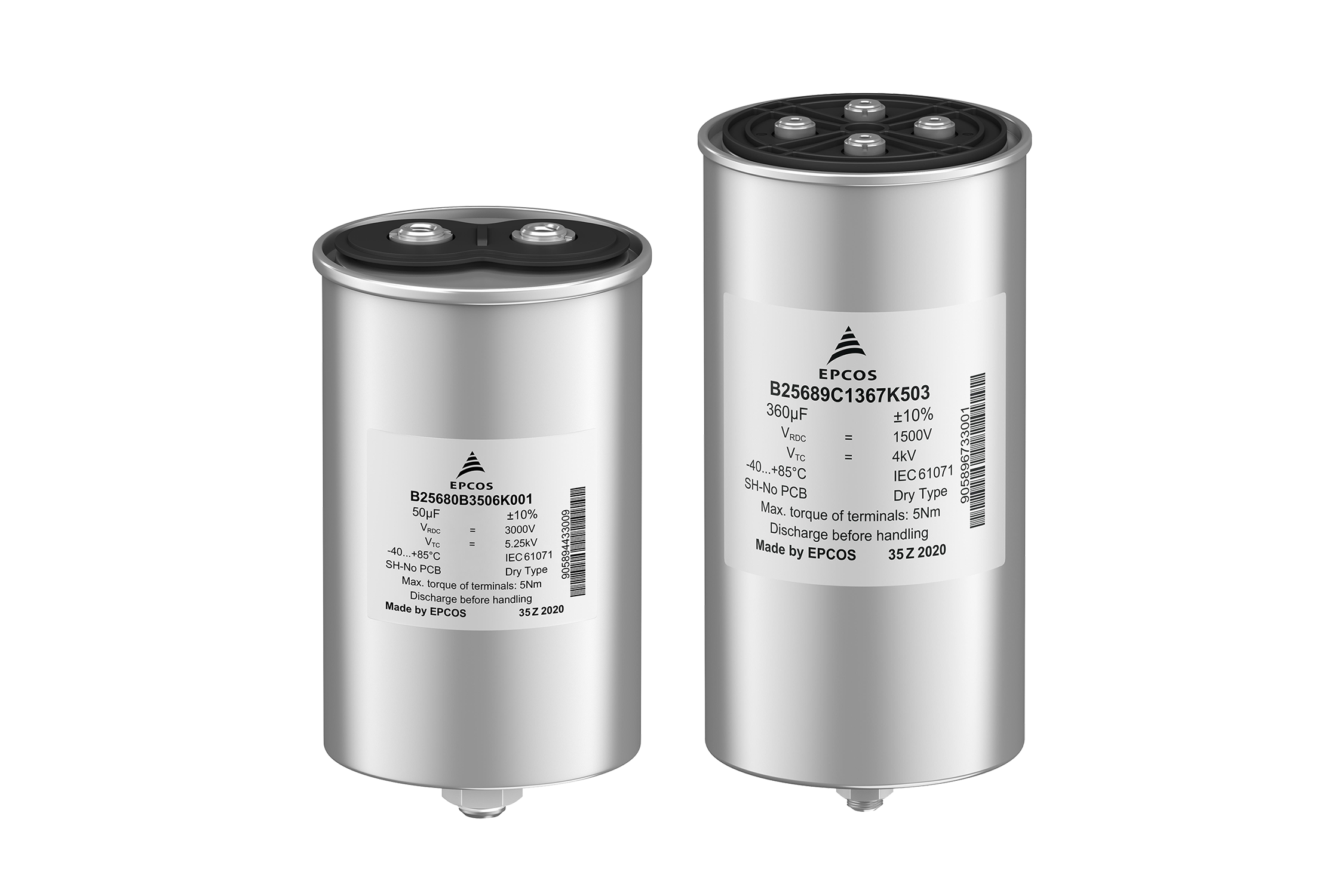

B2568*
Metal top

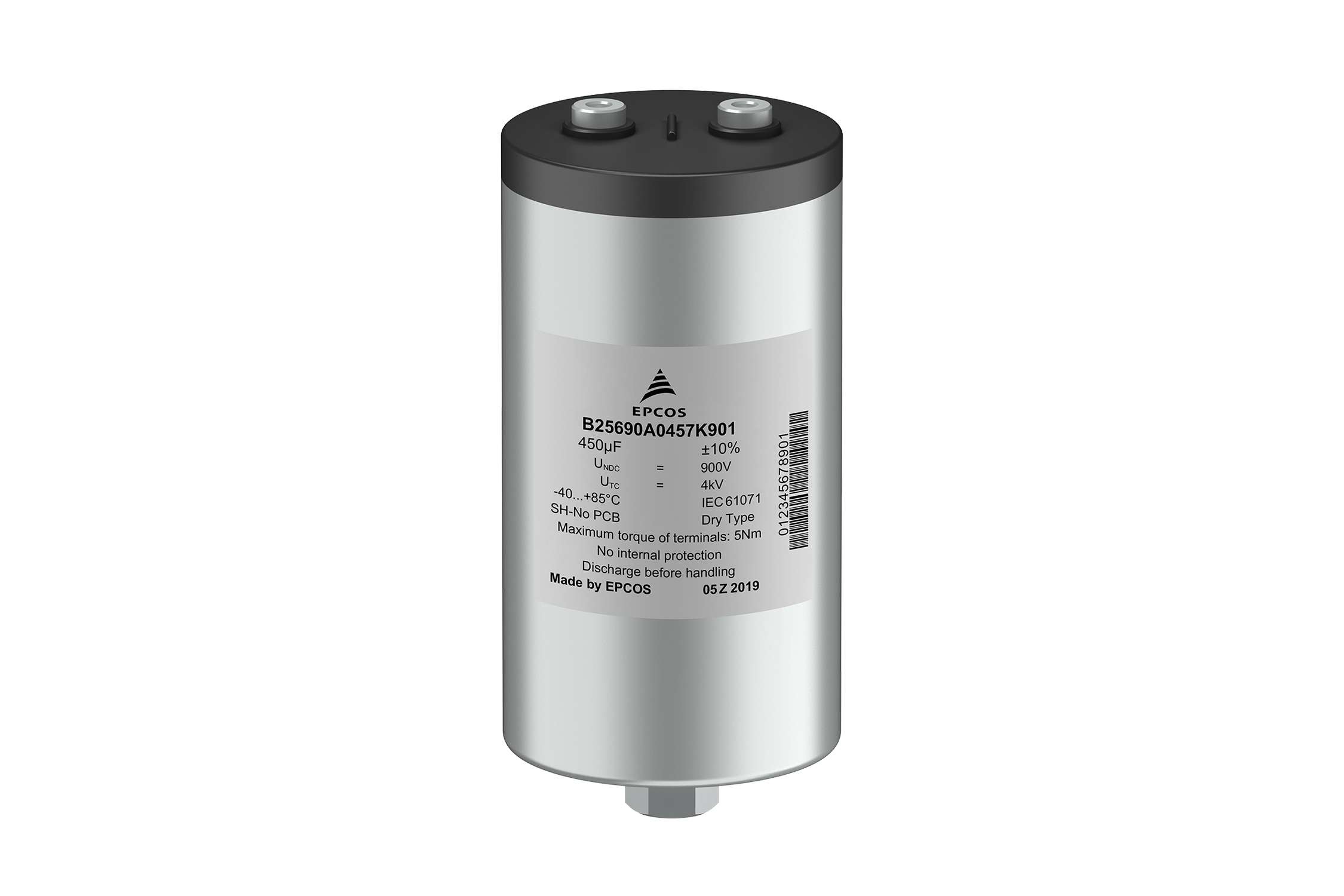

B2569*
Resin top

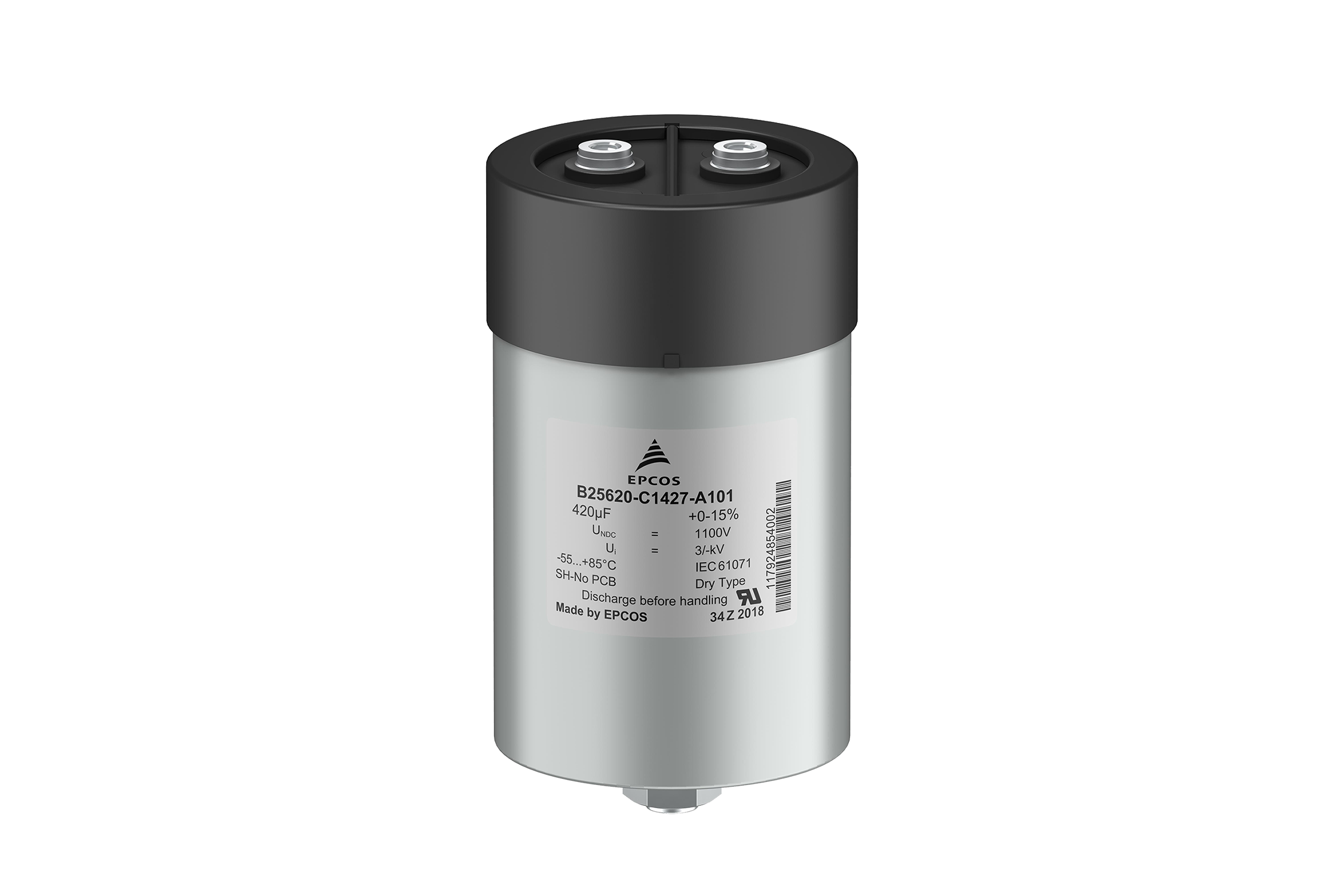

B2562*
Standard

Series

B2563*

B2568*

B2569*

B2562*

Available with male and female terminals

High humidity resistance
according IEC 61071

85°C / 85% RH / 1000 hours,
condensation possible

1.3 VR, 85°C / 85% / 500 hours

EN 45545


HL3 R23 (fire/smoke)

Case

Plastic PBT

Aluminum
Hermetically sealed for harsh environment

Aluminum

Aluminum

Optimized for high frequencies

Designs available

Designs available



Benefits

Compact power unit

  • Capacitors can be mounted very close to the power modules to reduce loop inductance
  • No need for snubber capacitors

Ultra low LSI

  • Optimized for high frequencies
  • ESL <12 nH possible

Metal top

  • Hermetically closed for harsh environment
  • Fire and smoke classification EN 45545 (HL3 level)

Applications

Check suitable applications per product


E-Mobility

Traction

Renewable Energy

Wind Solar

Industrial Drives


Product presentation


Download Detail Product Presentation

 Low LSI Pic

Low LSI / ULSI HF

PDF - 842.5 KB file_download Download
 Metal top Pic

Metal top

PDF - 639.6 KB file_download Download

Get data sheets

PDF Type Application Style Number of phases Rated capacitance (µF)
file_pdf_box
B25620 General purpose,  DC link,  Drives MKP DC 1 40 - 4000
file_pdf_box
B25631, B25632 Snubber & DC link,  Ultra Low ESL MKP DC ULSI HF 1 20 - 270
file_pdf_box
B25631, B25632 DC link,  Low ESL,  Snubber MKP DC LSI 1 20 - 300
file_pdf_box
B25680 DC link,  Drives MKP DC 1 50 - 4000
file_pdf_box
B25690 General purpose,  DC link,  Drives MKP DC 1 45 - 5500
