Film capacitors
September 15, 2021
TDK releases new, very compact X2 capacitors
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3021614/ratio4x3/210/158/c287a46a1acf8a00404fe0d471e1b7da/A0E9E33C68035387EC4F5DF63DC1EEF1/bild-teaser-grau-en.png","992":"/resource/image/3021614/ratio4x3/992/744/c287a46a1acf8a00404fe0d471e1b7da/6C3D3F7F1CC842E62EA0D60E9D99C4D8/bild-teaser-grau-en.png","333":"/resource/image/3021614/ratio4x3/333/250/c287a46a1acf8a00404fe0d471e1b7da/3C024837C6CA6ED63D6793C75D2C10AD/bild-teaser-grau-en.png","445":"/resource/image/3021614/ratio4x3/445/334/c287a46a1acf8a00404fe0d471e1b7da/244F229CE2DE33D67DDC0FBA650D1475/bild-teaser-grau-en.png","290":"/resource/image/3021614/ratio4x3/290/218/c287a46a1acf8a00404fe0d471e1b7da/AC07800493FF45CBAF281929166FBF04/bild-teaser-grau-en.png"}})

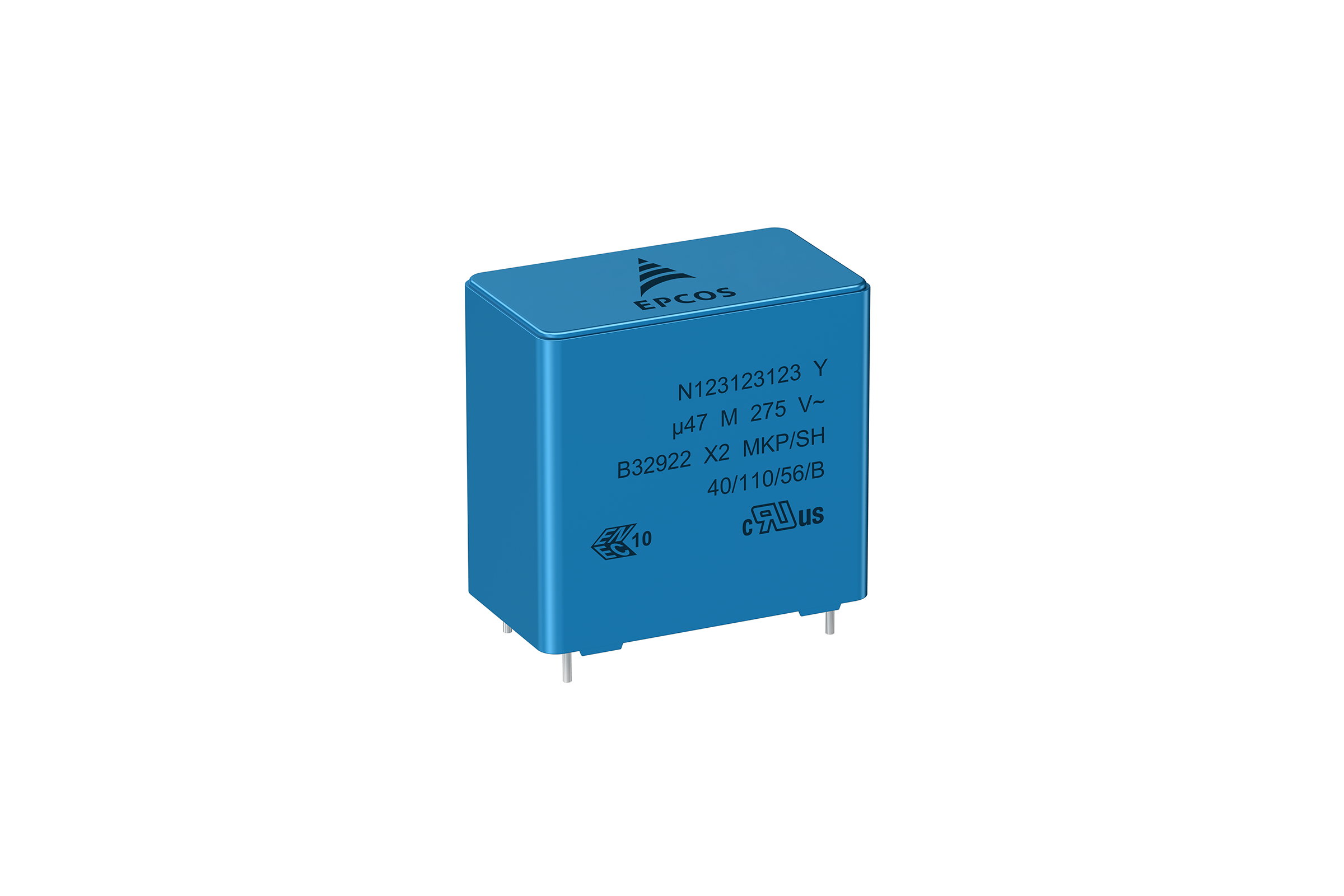

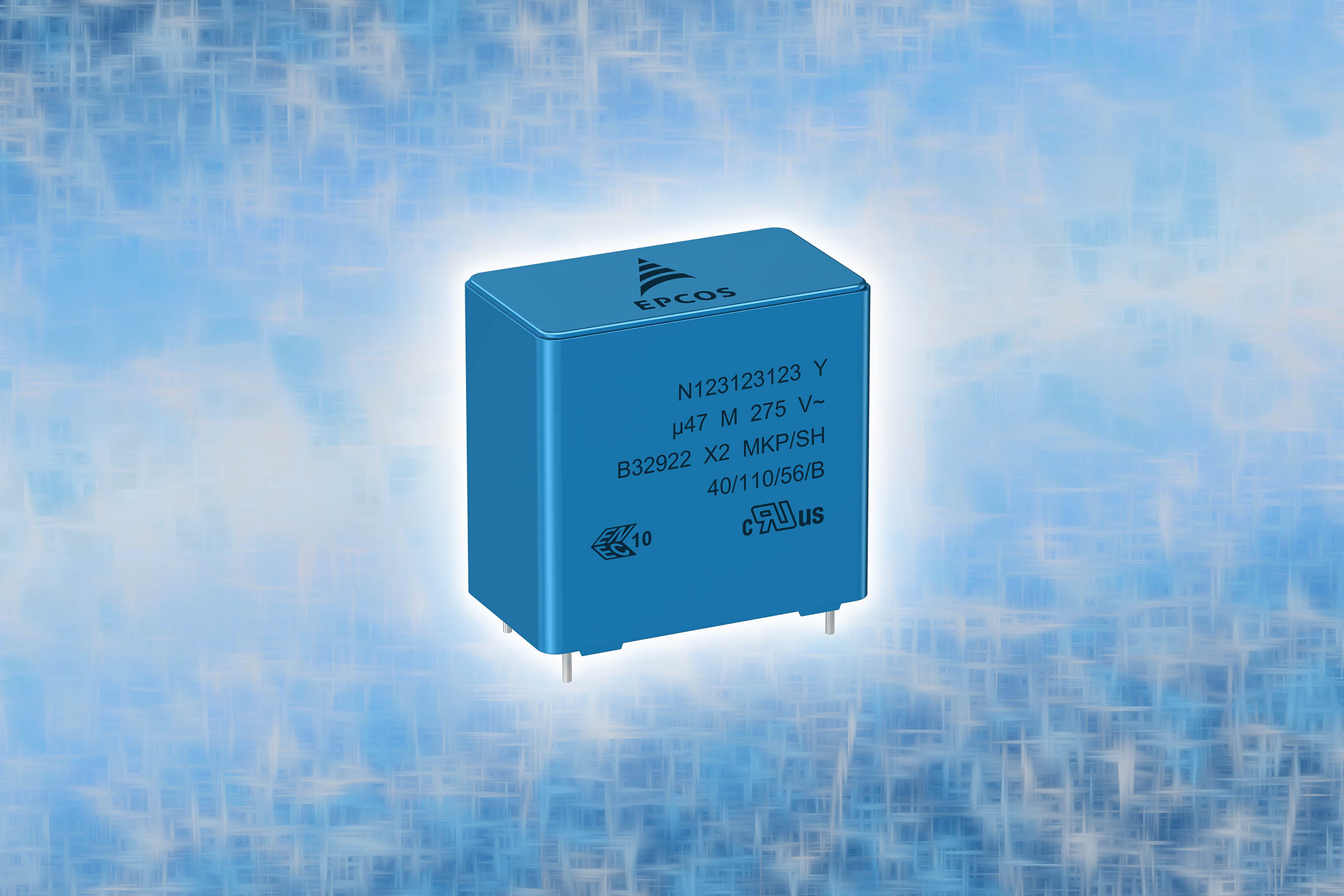

TDK Corporation (TSE:6762) presents a new series of very compact EPCOS X2 capacitors for noise suppression. They are rated for 275 V AC and cover a capacitance spectrum from 33 nF to 1 µF. Depending on the capacitance value, the interference suppression components have lead spaces of 10 mm (B32921X* / Y*), 15 mm (B32922X* / Y*) and 22.5 mm (B32923X* / Y*). Particularly noteworthy are the very compact dimensions ranging from only 4.0 × 9.0 × 13.0 mm (33 nF) to 10.5 × 16.5 × 26.5 mm (1 µF), which fluctuate depending on the capacitance. The capacitors are UL and EN approved, and the case and potting materials comply with UL94 V-0. They are also certified to IEC 60384-14:2013. The maximum operating temperature is 110 °C.
Thanks to their very compact dimensions, the new RoHS-compliant capacitors are suitable for household appliances and consumer electronics in indoor applications.
Main applications
- Household appliances
- Consumer electronics applications
Main features and benefits
- Very compact dimensions from only 4.0 × 9.0 × 13.0 mm to 10.5 × 16.5 × 26.5 mm
- Wide capacitance range from 33 nF to 1 µF
- UL and EN approvals, IEC 60384-14:2013 certification
- RoHS compatible
Further information on the products can be found under: www.tdk-electronics.tdk.com/en/emi_capacitors.
