Over-voltage protection
January 30, 2024
TDK offers varistors in SMD design with high surge current capability
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3219642/ratio4x3/210/158/32f110dde64d8545d65cc3a4e164efb6/434CA7C9DC024611886F9B424F48B671/bild-teaser-grau-en.png","992":"/resource/image/3219642/ratio4x3/992/744/32f110dde64d8545d65cc3a4e164efb6/85DB48DD96149B0923DC671BB7C31E32/bild-teaser-grau-en.png","333":"/resource/image/3219642/ratio4x3/333/250/32f110dde64d8545d65cc3a4e164efb6/71C973BAC4FA95EC113C44EB89A7A9F6/bild-teaser-grau-en.png","445":"/resource/image/3219642/ratio4x3/445/334/32f110dde64d8545d65cc3a4e164efb6/F86DF0C7BA85A9C3BAC53D3C8A2726CE/bild-teaser-grau-en.png","290":"/resource/image/3219642/ratio4x3/290/218/32f110dde64d8545d65cc3a4e164efb6/6765EF1A09A7A1B4E94830F43B811CD6/bild-teaser-grau-en.png"}})
TDK Corporation (TSE:6762) presents two new varistor series in SMD design. The types of both series are available for a wide range of operating voltages from 175 VRMS to 460 VRMS, corresponding to 225 VDC to 615 VDC. While the B72210M* series of surge devices, which are equivalent to S14 leaded disk varistors, offers a surge current capability of 6000 A, the B72214M* series types, which are equivalent to S20 leaded disk varistors, have a high surge current capability of 10,000 A. All types are designed for a high operating temperature of a maximum of +125 °C and extremely damp heat environment (85% relative humidity at +85 °C).

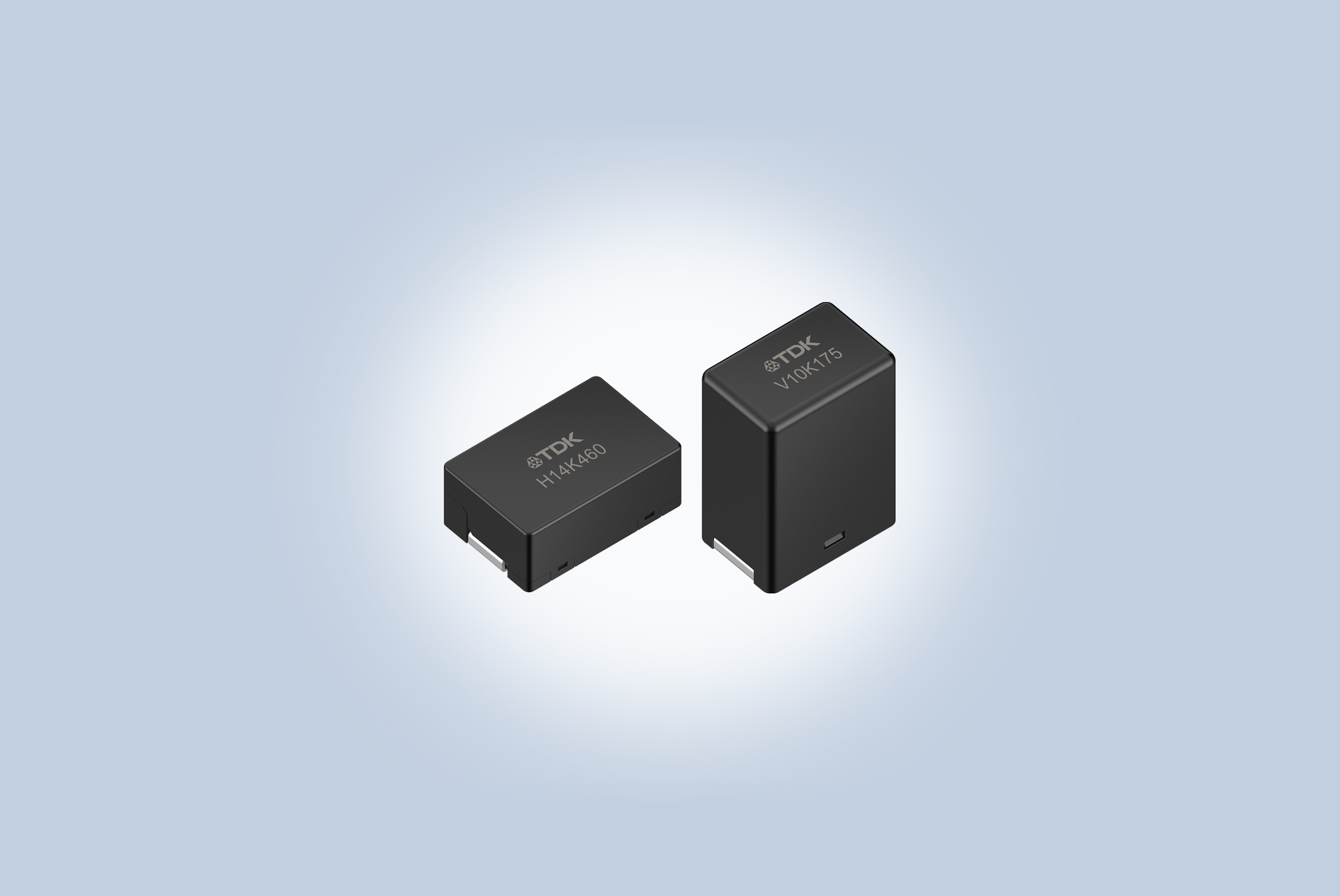

The new SMD high surge series is qualified to AEC-Q200. In terms of designs, all types are available in a horizontal as well as vertical version, which offers higher design flexibility. The horizontal version of the B72210M* series has dimensions of 22 x 15 x 11 mm, while the B72214M* series has dimensions of 27 x 18 x 11 mm, (L x W x H). The vertical types have dimensions of 15 x 10 x 20 mm and 18 x 10 x 25.5 mm, respectively. This results in space saving compared to leaded varistors with the same performance.
Typical applications of SMD surge protection components are on-board chargers, power supplies, frequency converters, photovoltaic systems and household appliances.
Features & Applications
Main applications
- On-board chargers, power supplies, frequency converters, photovoltaic systems and household appliances
Main features and benefits
- Wide range of operating voltages from 175 VRMS to 460 VRMS
- High surge current capability of 6000 A or 10,000 A
- Horizontal and vertical designs
- Qualified according to AEC-Q200
- Space saving compared to leaded disk varistors with the same performance
Further information on the products can be found at https://www.tdk-electronics.tdk.com/en/smd_varistors
