Film capacitors
April 7, 2022
TDK offers new Y2 capacitors for high-temperature requirements
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3090370/ratio4x3/210/158/10dfb489abbc42ae1519cd133c161be4/CBC55F980FD61B11AA33792D5E8F9C5B/bild-teaser-grau-en.png","992":"/resource/image/3090370/ratio4x3/992/744/10dfb489abbc42ae1519cd133c161be4/598B202D91E194862944F241508D1283/bild-teaser-grau-en.png","333":"/resource/image/3090370/ratio4x3/333/250/10dfb489abbc42ae1519cd133c161be4/8612A903CCC898B06FAF97D0975A0493/bild-teaser-grau-en.png","445":"/resource/image/3090370/ratio4x3/445/334/10dfb489abbc42ae1519cd133c161be4/5F223073E93E762C3EBBB3ED5CB49222/bild-teaser-grau-en.png","290":"/resource/image/3090370/ratio4x3/290/218/10dfb489abbc42ae1519cd133c161be4/643782EF433211D8B37C1D5BED3D81BE/bild-teaser-grau-en.png"}})

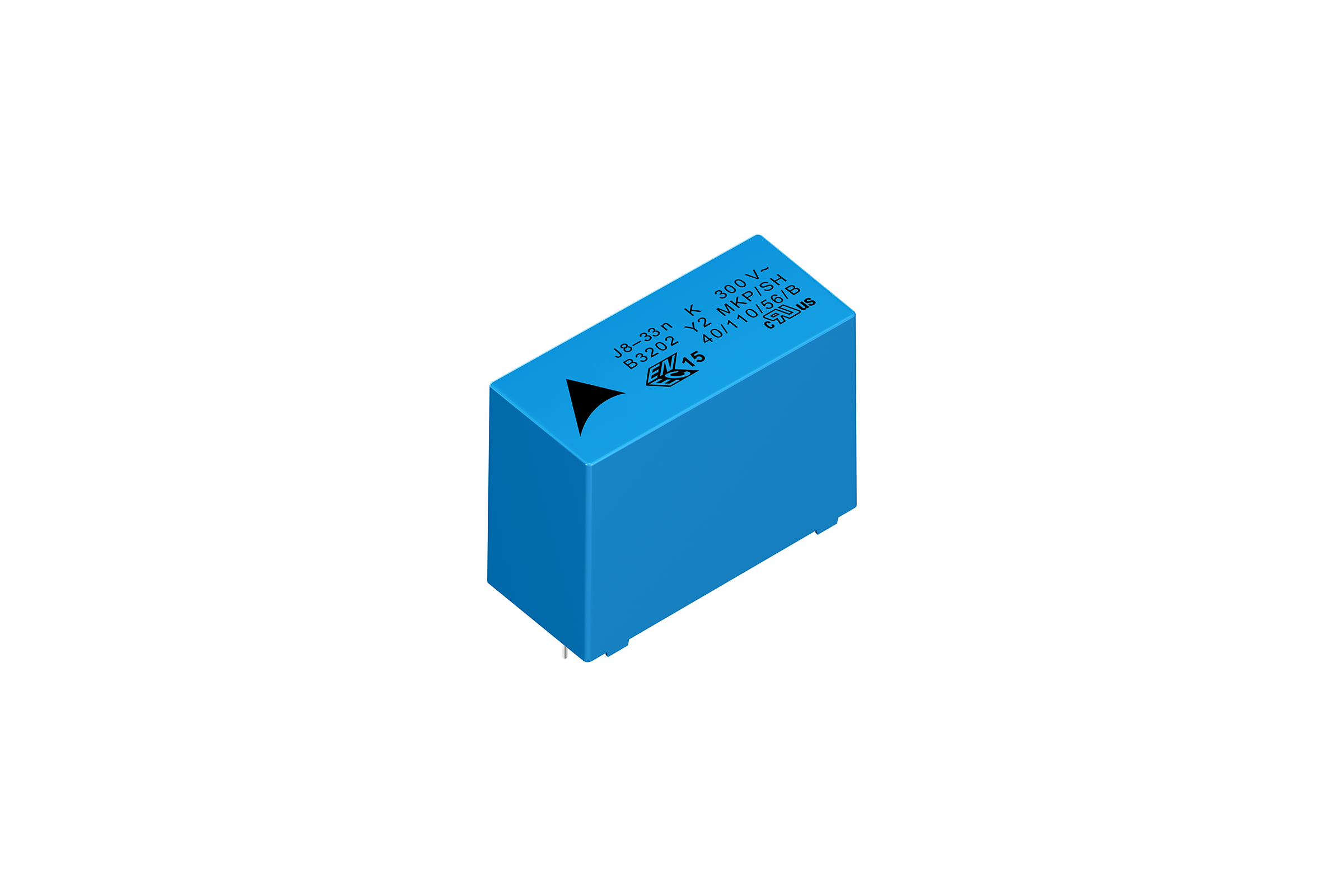

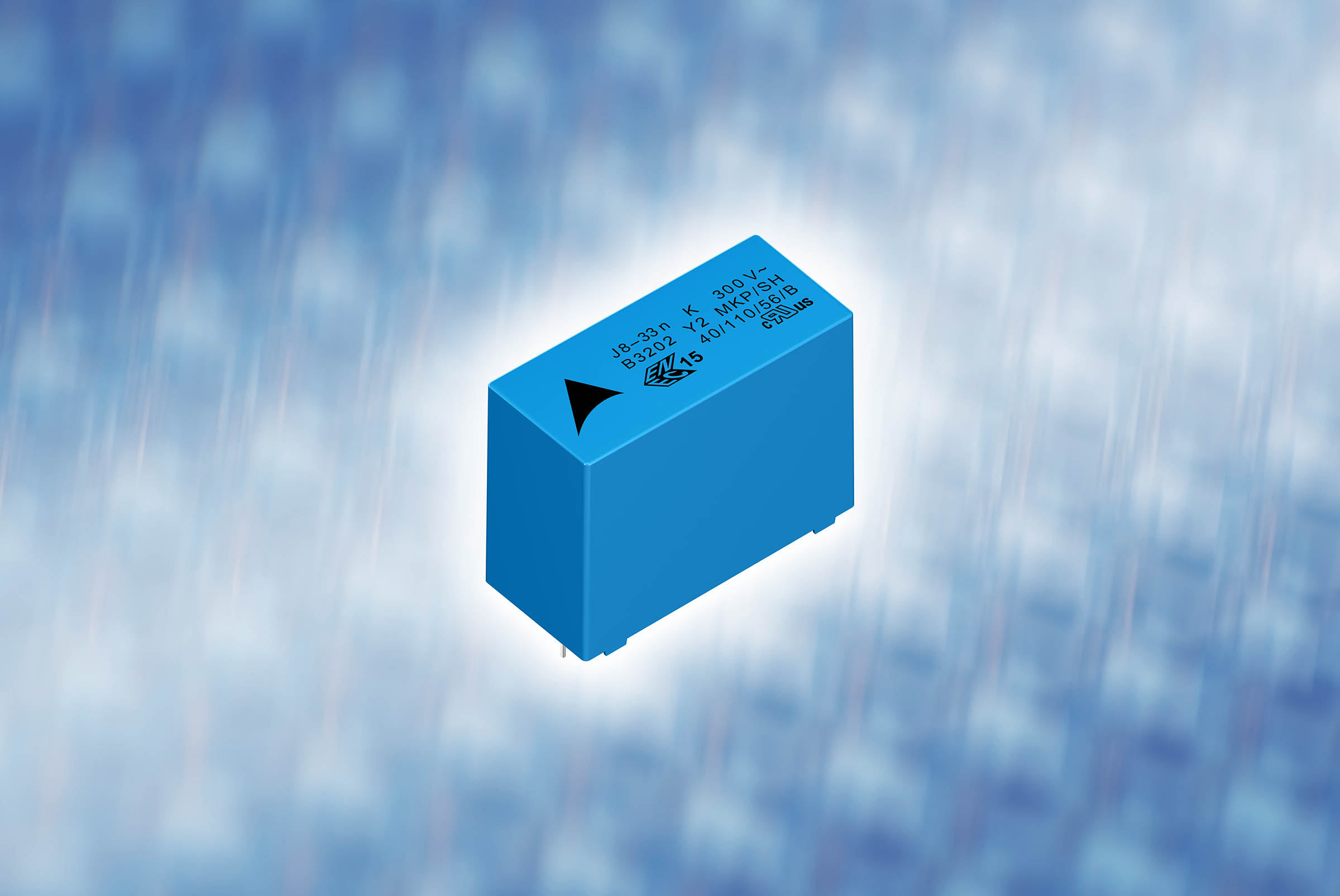

TDK Corporation (TSE:6762) presents a new series of EPCOS MKP-Y2 capacitors for interference suppression. In contrast to conventional models designed for a maximum operating temperature of 110 °C, the new capacitors offer a maximum permissible operating temperature of 125 °C. The B3202*H/J series’ capacitance ranges from 1 nF to 1 µF with a maximum rated voltage of 300 V AC. The capacitors are certified according to IEC 60384-14:2013/AMD1:2016 and approved according to AEC-Q200D, UL, and EN. Depending on the capacitance, the products are available in lead spacing of 10 mm (B32021H/J*), 15 mm (B32022H/J*), 22.5 mm (B32023H/J*), and 27.5 mm (B32024H/J*) and 37.5 mm (B32026H/J). The housing, for example potting material, corresponds to UL94V-0.
Typical fields of application for the new Y2 capacitors include interference suppression in filters and at high operating temperatures, such as automotive applications.
Features & Applications
Main fields of application
- Interference suppression at high operating temperatures, such as in automotive applications
Main features and benefits
- Increased operating temperature of 125 °C
- Wide capacitance range from 1 nF to 1 µF
- UL and EN approval, qualification according to AEC-Q200
Further information on the products can be found under http://www.tdk-electronics.tdk.com/en/emi_capacitors.
