Aluminum electrolytic capacitors
August 8, 2023
TDK offers new ultra-compact snap-in capacitor series with extremely high capacitance density
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3169140/ratio4x3/210/158/51ea385a3678d792ad5a28af90608308/2DF0C126B5040029C72BCEBC1AA1DC93/bild-teaser-grau-en.png","992":"/resource/image/3169140/ratio4x3/992/744/51ea385a3678d792ad5a28af90608308/FB1D21451E41CD8E4484A82B77E2F785/bild-teaser-grau-en.png","333":"/resource/image/3169140/ratio4x3/333/250/51ea385a3678d792ad5a28af90608308/8C63E9532605C6AC38965EFA6C536027/bild-teaser-grau-en.png","445":"/resource/image/3169140/ratio4x3/445/334/51ea385a3678d792ad5a28af90608308/5278F7A5FD46D2E2BF14D708B7CA7FF4/bild-teaser-grau-en.png","290":"/resource/image/3169140/ratio4x3/290/218/51ea385a3678d792ad5a28af90608308/D47A2DE8AD6B2A01FA5BD4202623CEC6/bild-teaser-grau-en.png"}})

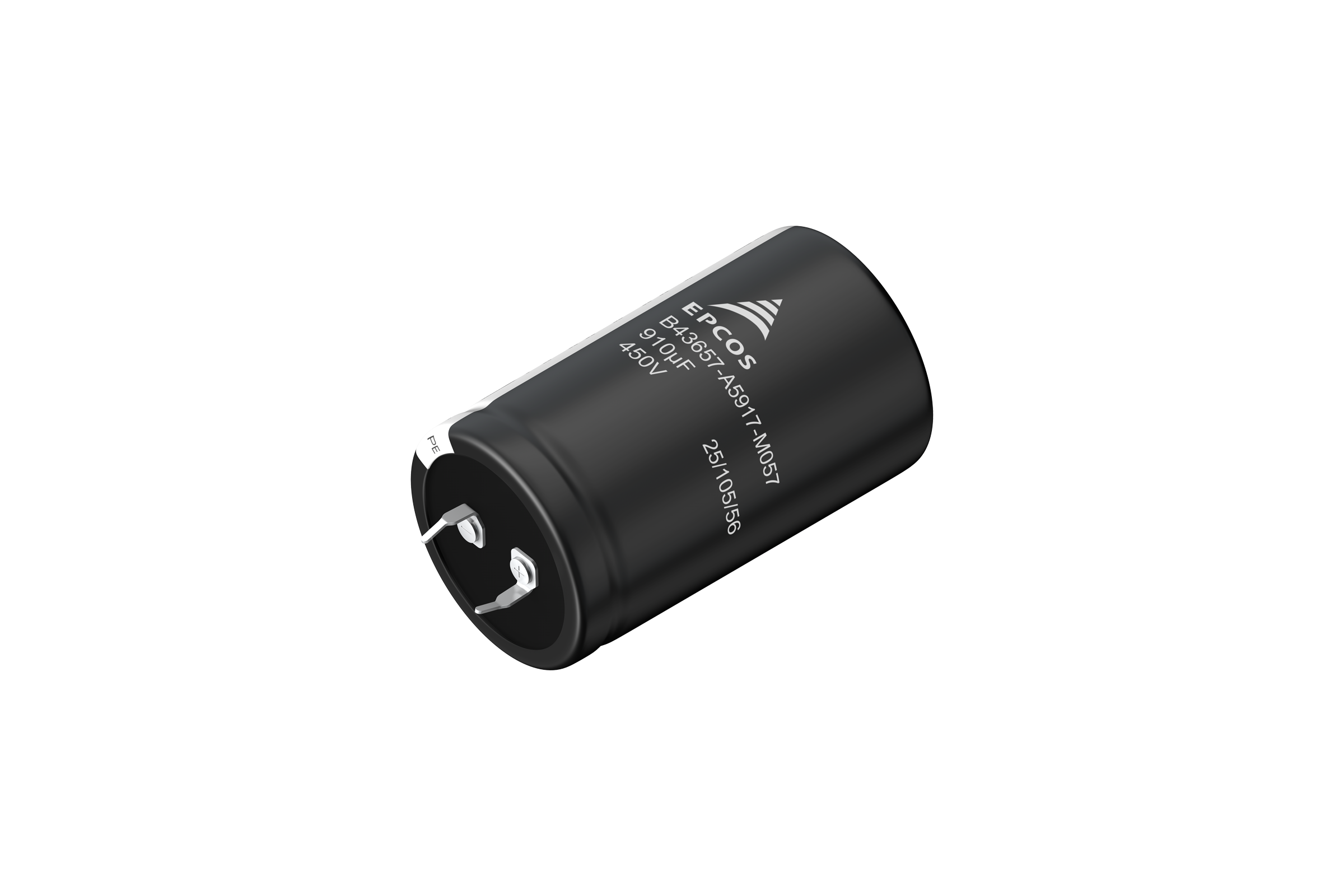

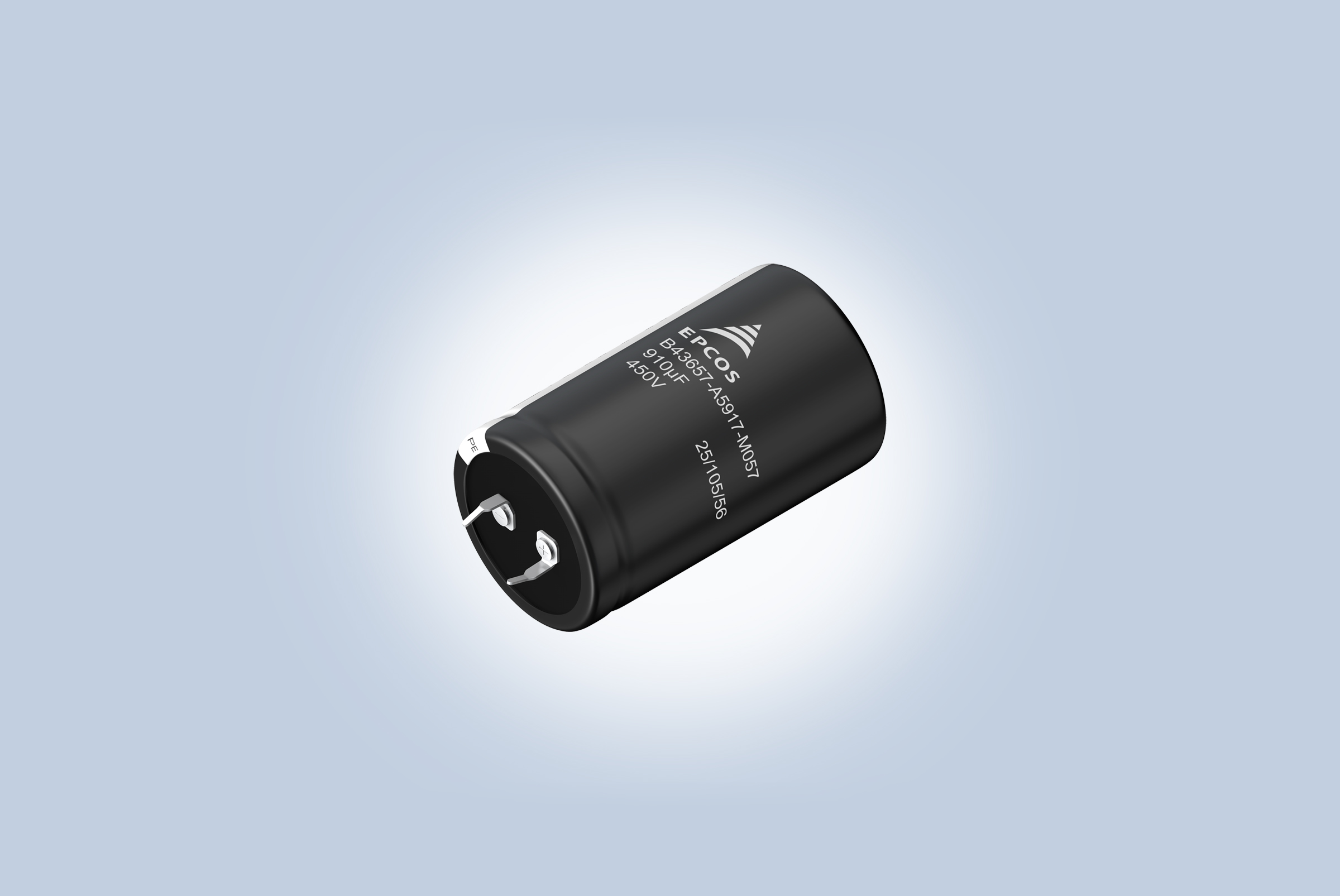

TDK Corporation (TSE:6762) presents the new EPCOS B43657* aluminum electrolytic capacitor series with snap-in terminals. The capacitors achieve a service life of at least 2000 h at a maximum operating temperature of 105 °C and cover a rated voltage range from 450 V DC to 475 V DC with capacitance values from 120 µF to 1250 μF. An important performance feature is their high ripple current capability of up to 8.54 A (120 Hz, 60 °C). Accurate lifetime calculation under application-specific conditions is quick and easy with the online AlCap Tool. (www.tdk-electronics.tdk.com/en/alcap_tool).
Particularly noteworthy is the extremely high capacitance density of the ultra-compact capacitors with case sizes from only 22 mm x 25 mm to 35 mm x 60 mm (D x H).
Due to their high reliability, these RoHS-compatible capacitors are optimal for use in high-end switched-mode power supplies and power supplies for industrial and telecommunications applications. In addition, they are well-suited for UPS systems, photovoltaic inverters and frequency converters.
Features & Applications
Main applications
- High-end switching power supplies
- Power supplies for industrial and telecommunication applications
- UPS systems
- Photovoltaic inverters
- Frequency converters
Main features and benefits
- Extremely high-capacitance density
- Ultra-compact dimensions
- High reliability
- RoHS compliant
Further information on the products can be found under www.tdk-electronics.tdk.com/en/alu_snap
