Inductors
August 12, 2024

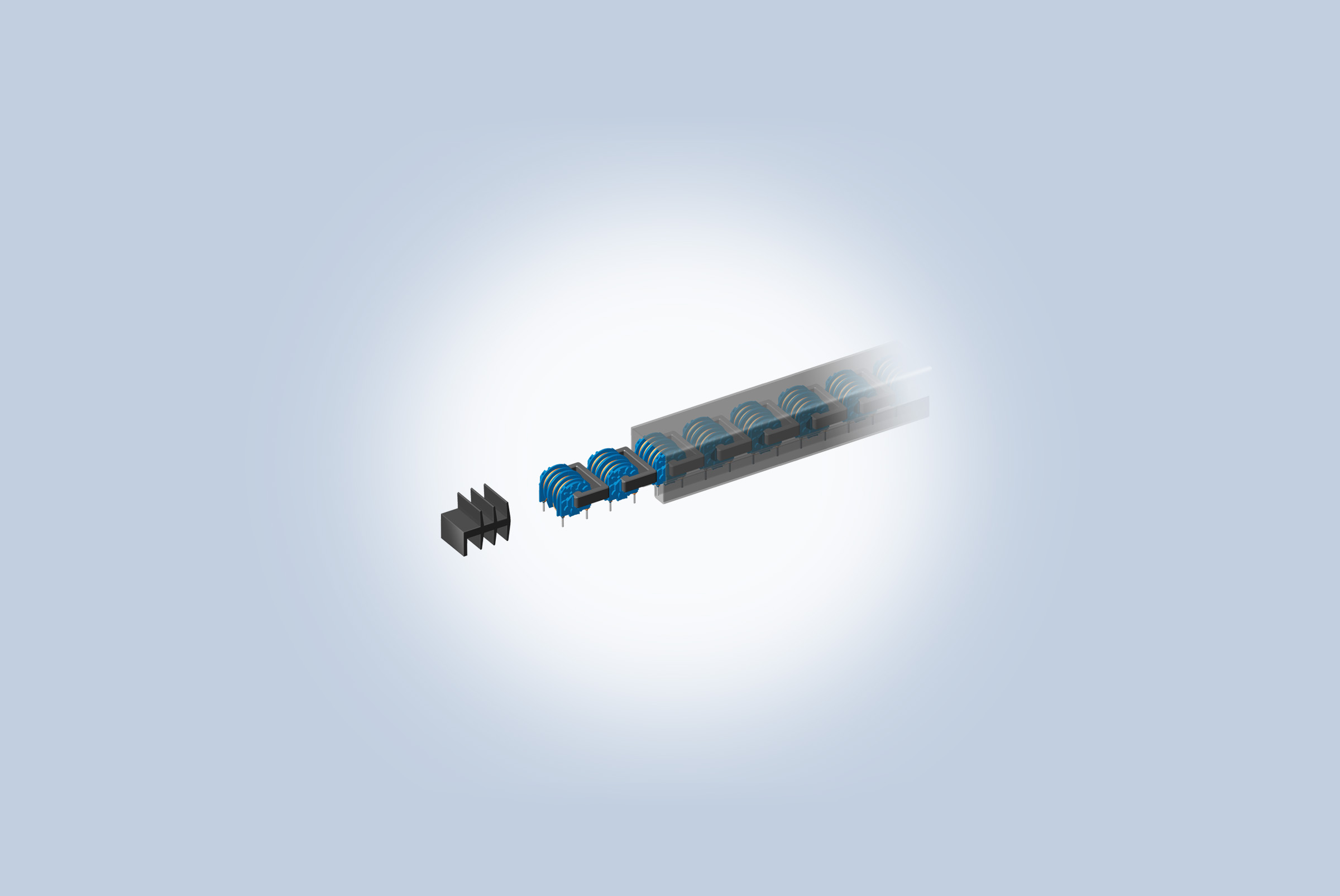

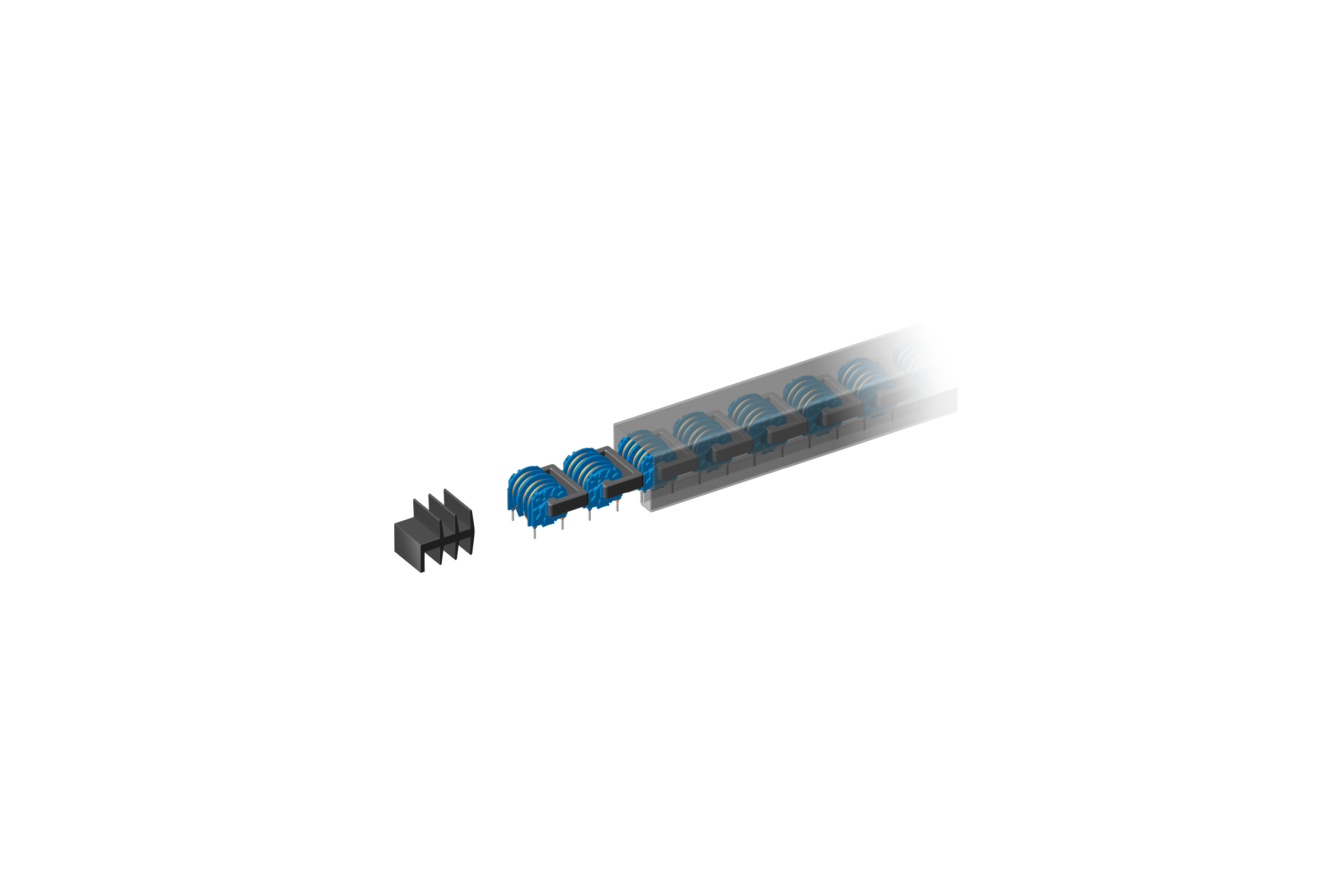

TDK introduces tube magazines for various series of ring core chokes for automatic pick and place
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3271012/ratio4x3/210/158/4aec639aadfbdc674af4c6dcf9173287/E631791BCD6B6DA3EA3AFB382AF925B2/bild-teaser-grau-en.png","992":"/resource/image/3271012/ratio4x3/992/744/4aec639aadfbdc674af4c6dcf9173287/463B10015E7179EB13D69DE3F99E2EE9/bild-teaser-grau-en.png","333":"/resource/image/3271012/ratio4x3/333/250/4aec639aadfbdc674af4c6dcf9173287/0CE0B1126522AA9EB9F68498C0F9F78F/bild-teaser-grau-en.png","445":"/resource/image/3271012/ratio4x3/445/334/4aec639aadfbdc674af4c6dcf9173287/180FB25D3D0DC18A70F36568BD1960E2/bild-teaser-grau-en.png","290":"/resource/image/3271012/ratio4x3/290/218/4aec639aadfbdc674af4c6dcf9173287/74DF337072CCE4CA5771DE9DC309FFBC/bild-teaser-grau-en.png"}})
TDK Corporation (TSE:6762) introduces tube magazines for several ring core chokes series as an alternative packaging to the blister tray in a cardboard box. Tube magazines provide a reliable, efficient, and automated way to handle and supply components in a production line, which is crucial for maintaining high throughput and quality in manufacturing processes. The table below shows which component series these are, and which are already available or coming soon.
Components within a tube magazine are typically aligned in a consistent orientation. This makes it easier for the automated pick-and-place machinery to identify and handle each component correctly, reducing the likelihood of errors during placement. Tube magazines can be easily integrated with automated feeders which can push components out of the tube one at a time, ensuring a steady supply of parts to the pick-and-place machine without manual intervention. Keeping components in a tube magazine protects them from physical damage that could occur during manual handling. Many automated pick-and-place machines are designed to work seamlessly with tube magazines, ensuring smooth and efficient operation. The standardized design of tube magazines allows for quick setup and changeover between different production runs.
Features & Applications
Main applications
- Suppression of common-mode interferences
- Switch-mode power supplies
- Power inverters
Main features and benefits
- Efficient component storage
- Consistent orientation of the components
- Automated feeding for pick-and-place machinery
- Reduced handling damage
- Minimized downtimes and changeover times in the production line
Key Data
Ordering number | Type | Availability |
|---|---|---|
| B82720K | Power line chokes | Available |
| B82791H/K | Data and signal line chokes, power line chokes | Available |
| B82791H2*N010 | Power line chokes | Available |
| B82721A | Power line chokes | Available |
| B82722J | Power line chokes | Available |
| B82720A | Power line chokes | Coming soon |
| B82791G | Data and signal line chokes, power line chokes | Coming soon |
| B82721J/K | Power line chokes | Coming soon |
| B82722A | Power line chokes | Coming soon |
| B82721K2*U | Power line chokes | Coming soon |
| B82723A/J | Power line chokes | Coming soon |
| B82724A/B/J | Power line chokes | Coming soon |
| B82724J2*U | Power line chokes | Coming soon |
| B82724J8*N | Power line chokes | Coming soon |
| B82725A | Power line chokes | Coming soon |
| B82725J | Power line chokes | Coming soon |
Further information on the products can be found at https://www.tdk-electronics.tdk.com/en/power_chokes
