PFC capacitors: Much longer life and higher energy density

• Extended service life of up to 200,000 hours
• 20 percent higher energy density of up to 11.8 kvar/l
• High maximum permissible inrush current of 500 times the rated current (plus 25 percent)
• Overpressure disconnector for all three phases

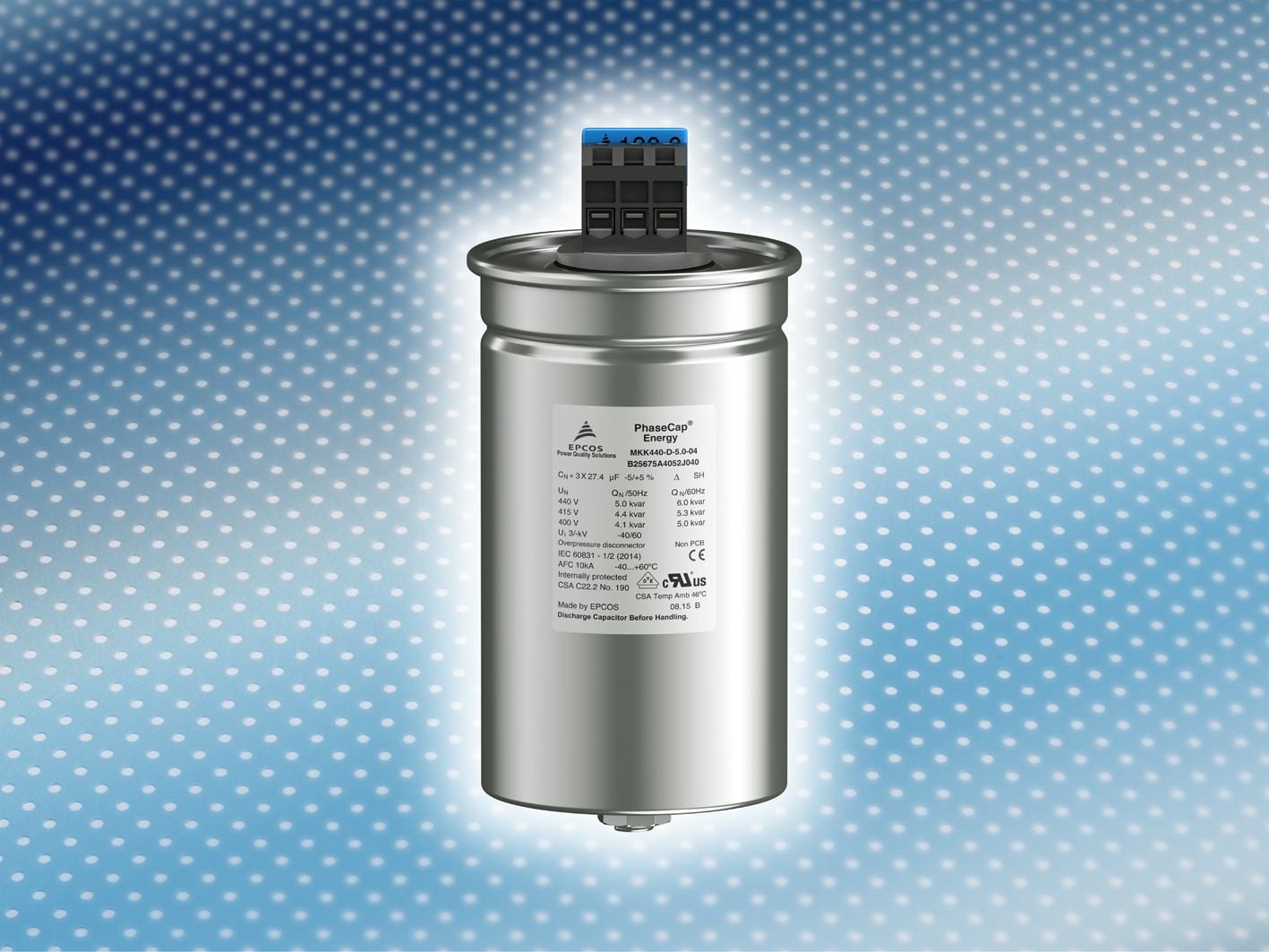

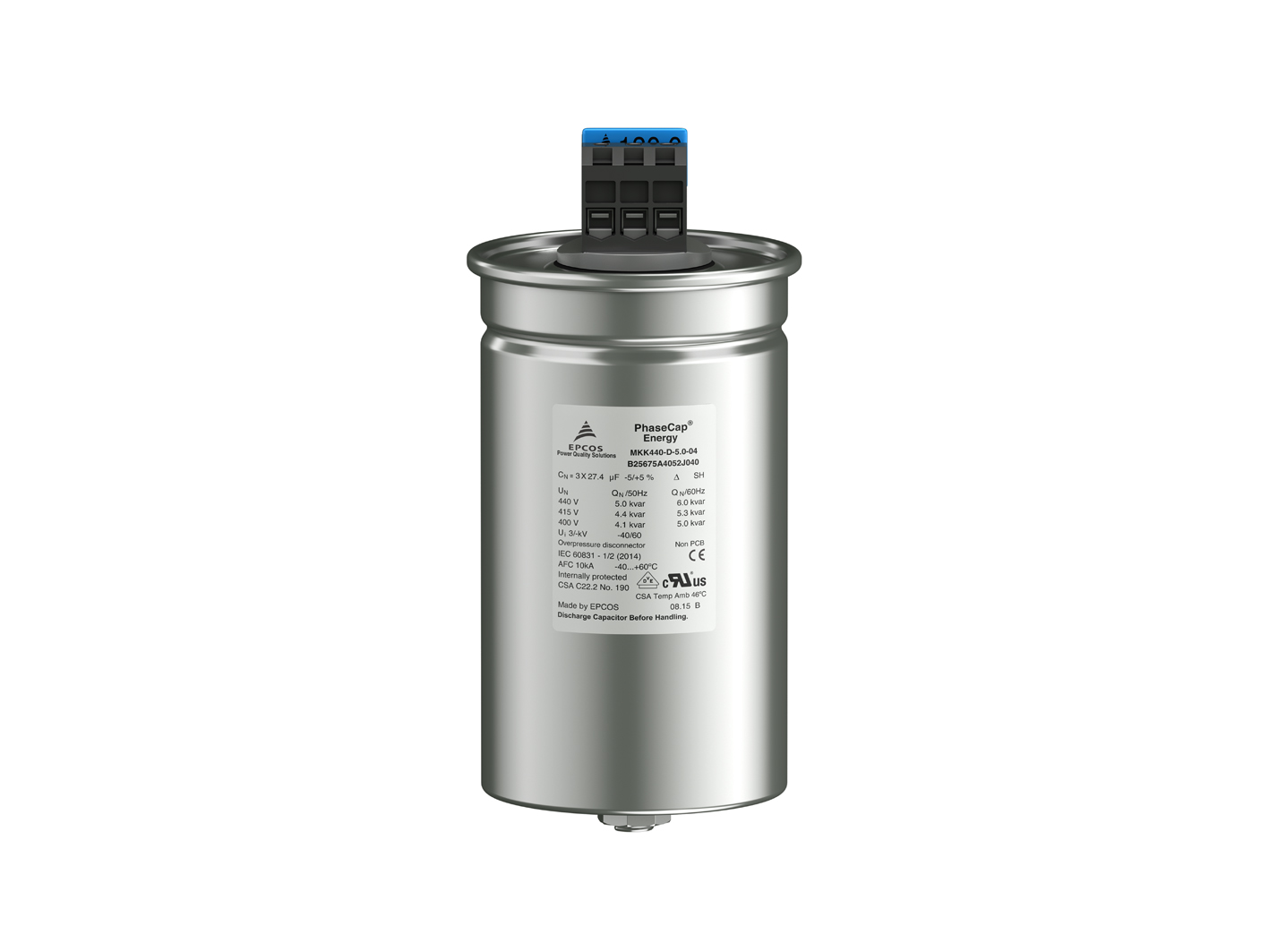

TDK Corporation presents EPCOS PhaseCap^® Energy – two new series of high power capacitors for power factor correction. These components are available with gas or resin-filled housings. They are designed for voltages of 230 V AC to 690 V AC and offer a reactive power of between 5 kvar and 33 kvar.

The life expectancy of the B25674* series of gas-impregnated capacitors has been possible to extend by nearly 40 percent from 130,000 to 180,000 hours. The maximum permissible inrush current was also increased by 25 percent to 500 x I_R. The new capacitors can also be switched significantly more frequently: For example, the maximum number of switching cycles per year has been doubled from 7500 to 15,000. The maximum permissible operating temperature as per IEC 60831-1 has also now been raised by 5 K to 60 °C.

The B25675* series of resin-filled capacitors features an even longer life expectancy of 200,000 hours and is likewise designed for a maximum operating temperature of 60 °C and a maximum permissible inrush current of 500 x I_R.

A further significantly improved feature of both series is their increased energy density in comparison with the existing types: For the 28 kvar / 440 V types, for example, this has been raised by more than 20 percent from 9.7 kvar/l to 11.8 kvar/l. This also results in compact dimensions: The new PhaseCap Energy capacitors feature a diameter of between just 75 mm and 125 mm, depending on the type, and a height of between 164 mm and 224 mm.

Like all EPCOS three-phase PFC capacitors PhaseCap Energy is equipped with an overpressure disconnector that isolates all three phases from the grid in the event of damage.

Main applications

• Power factor correction in industrial networks with voltages of between 230 V AC and 690 V AC

Main features and benefits

• Life expectancy of up to 200,000 hours
• Maximum permissible inrush current of 500 x I_R
• 20 percent higher energy density of up to 11.8 kvar/l
• Overpressure disconnector acting on all three phases

Key data

Further information on the products can be found under www.epcos.com/pfc_phasecap_energy
