Overvoltage protection
July 15, 2022
TDK offers extremely compact and robust varistors with 14 mm disk diameter
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3099294/ratio4x3/210/158/a8bbb53ade8dd141b49009ff764afeae/6125C4000F847C343547E4F14E86B788/bild-teaser-grau-en.png","992":"/resource/image/3099294/ratio4x3/992/744/a8bbb53ade8dd141b49009ff764afeae/40179459AD5B23AB75C5B8F8E7EB1646/bild-teaser-grau-en.png","333":"/resource/image/3099294/ratio4x3/333/250/a8bbb53ade8dd141b49009ff764afeae/BCF90DE187B2B5B7A07D5BAF7186C299/bild-teaser-grau-en.png","445":"/resource/image/3099294/ratio4x3/445/334/a8bbb53ade8dd141b49009ff764afeae/E26BA1CCCE9669C69FEBA22D499C3CE1/bild-teaser-grau-en.png","290":"/resource/image/3099294/ratio4x3/290/218/a8bbb53ade8dd141b49009ff764afeae/C66633CB3C5BA5C9F1A85C110623B4A4/bild-teaser-grau-en.png"}})

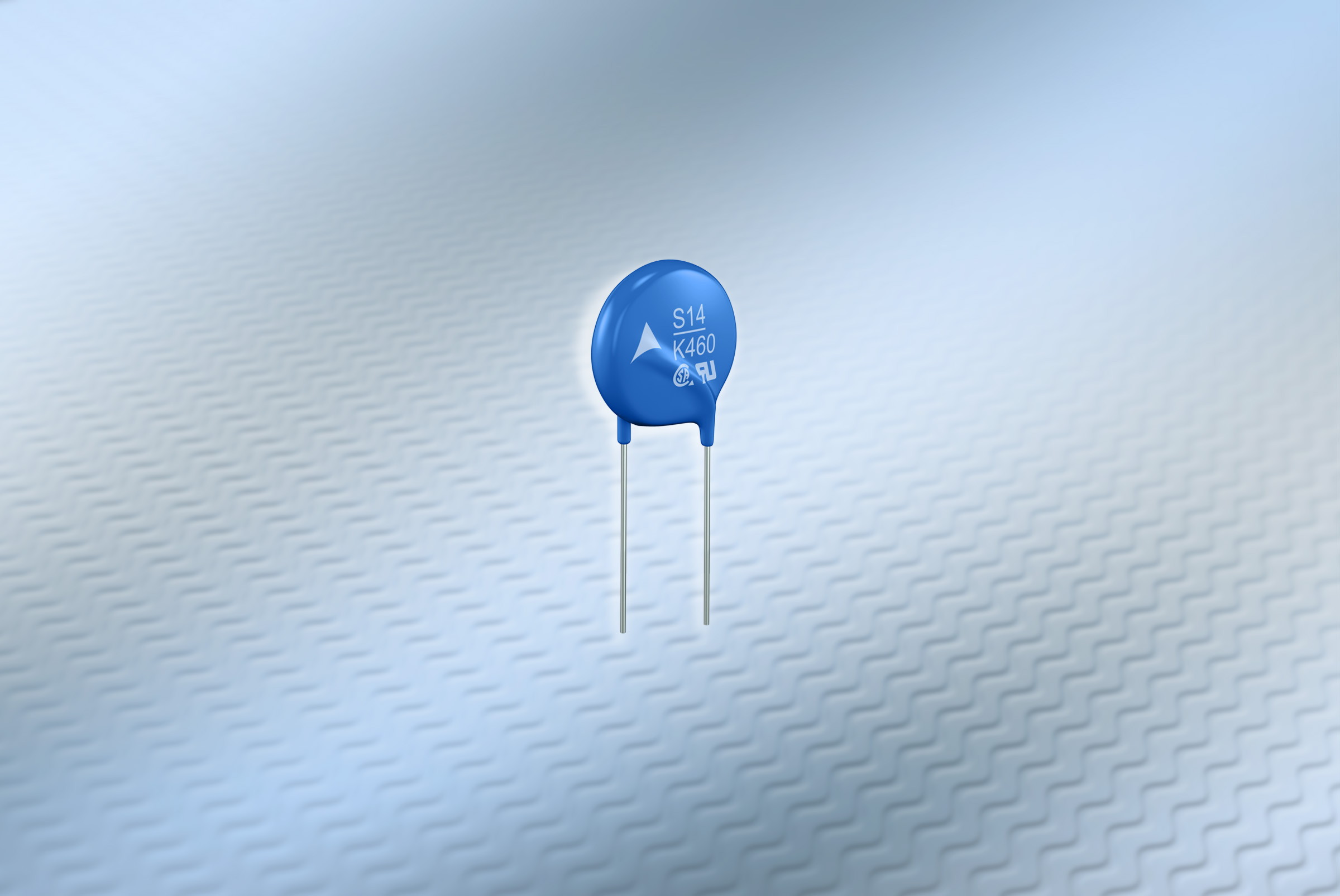

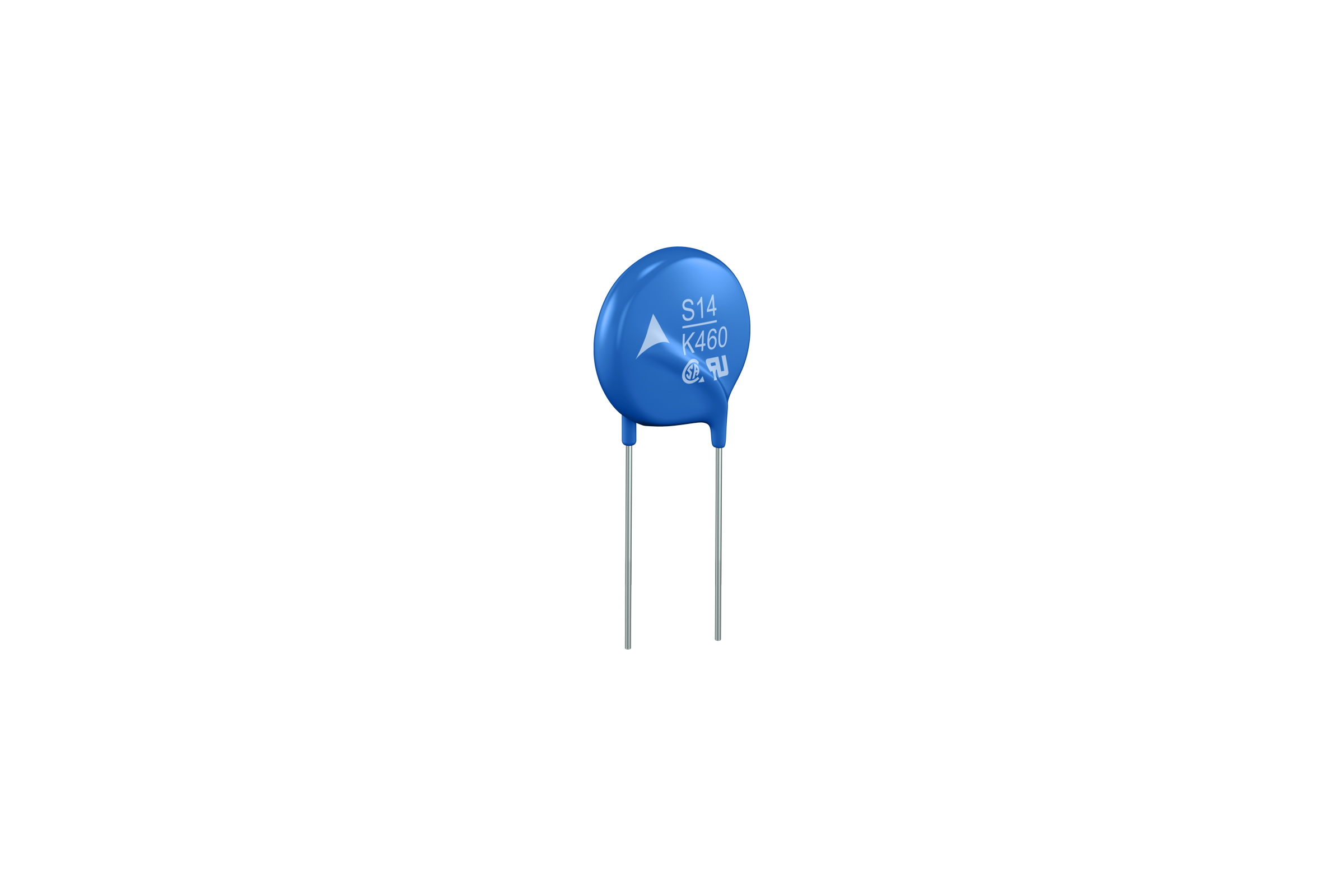

TDK Corporation (TSE:6762) presents the new EPCOS B72314S2* series (AdvanceD S14 Compact) of leaded disk varistors. The series covers a wide operating voltage ranging from 175 VRMS to 625 VRMS. The maximum surge current capability of a single pulse current (8/20 µs) is up to 6000 A. Furthermore, they offer a multiple surge current capability of 3000 A at 8/20 µs according to UL 1449, 4th edition, type 5 listed.
The smaller dimensions with the same excellent performance as comparable S14 AdvanceD types are particularly noteworthy. The disk diameters range from 13 to 14 mm, a reduction of approximately 3 mm compared to AdvanceD S14 series. The coating of the disks consists of a flame-retardant synthetic resin according to
UL 94 V-0. The SIOV varistors are certified according to UL, CSA, VDE and IEC.
Thanks to the compact dimensions design and outstanding electrical characteristics, the AdvanceD S14 Compact types allow space-saving designs for the target applications such as household appliances, smart meters, inverters and many others.
Features & Applications
Main applications
- Household appliances and smart meters
- Industrial applications such as inverters
Main features and benefits
- Wide operating voltage range from 175 VRMS to 625 VRMS
- Multiple surge current capability of 3000 A (8/20 µs)
- Compact dimensions of diameters from 13 to 14 mm
- Coating flame-retardant according to UL 94 V-0
- Approvals: UL, CSA, VDE and IEC
Further information on the products can be found under www.tdk-electronics.tdk.com/en/varistors_leaded.
