Transformers: Compact SMD push-pull transformers

 Bild_Teaser_en

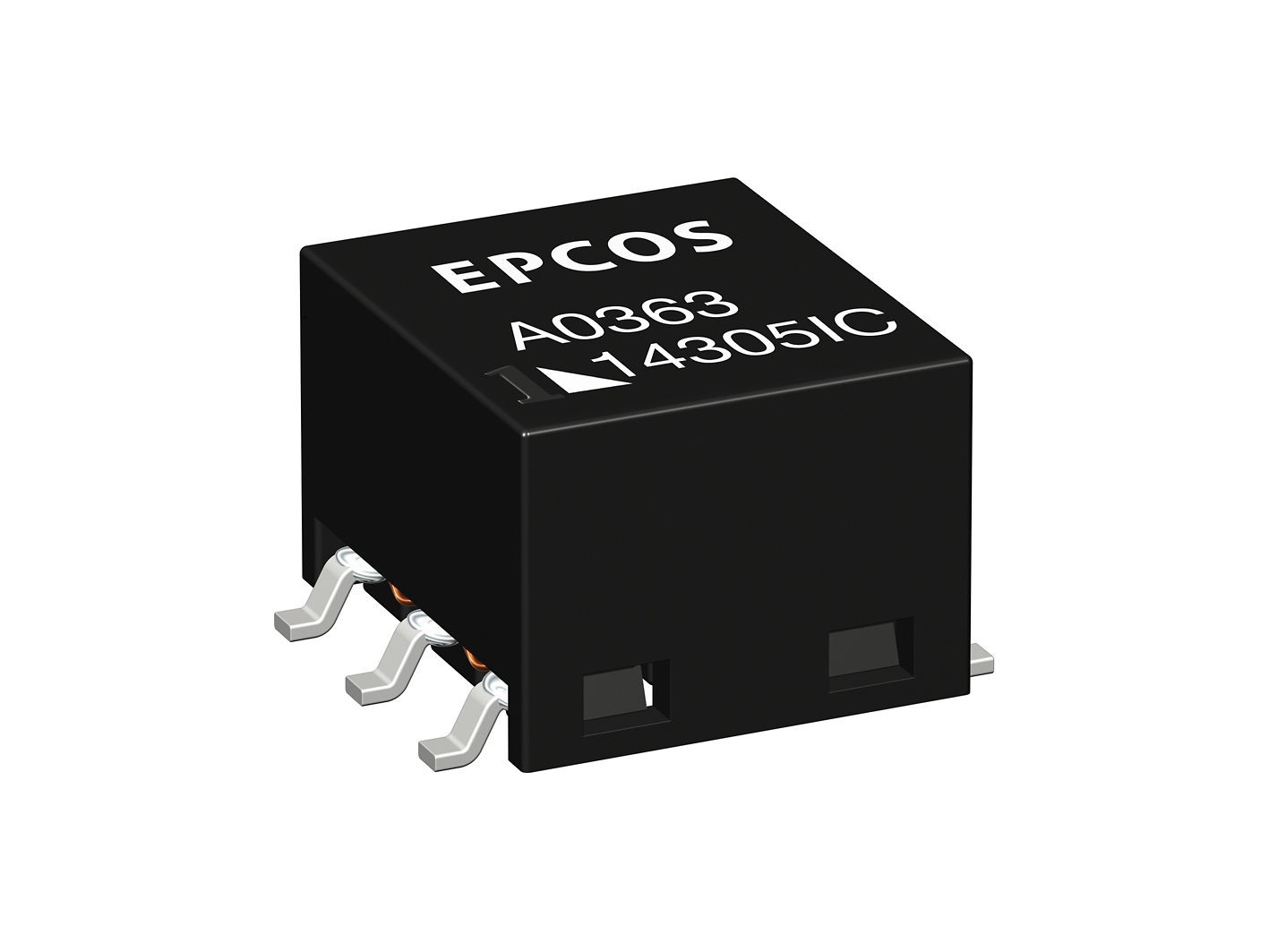

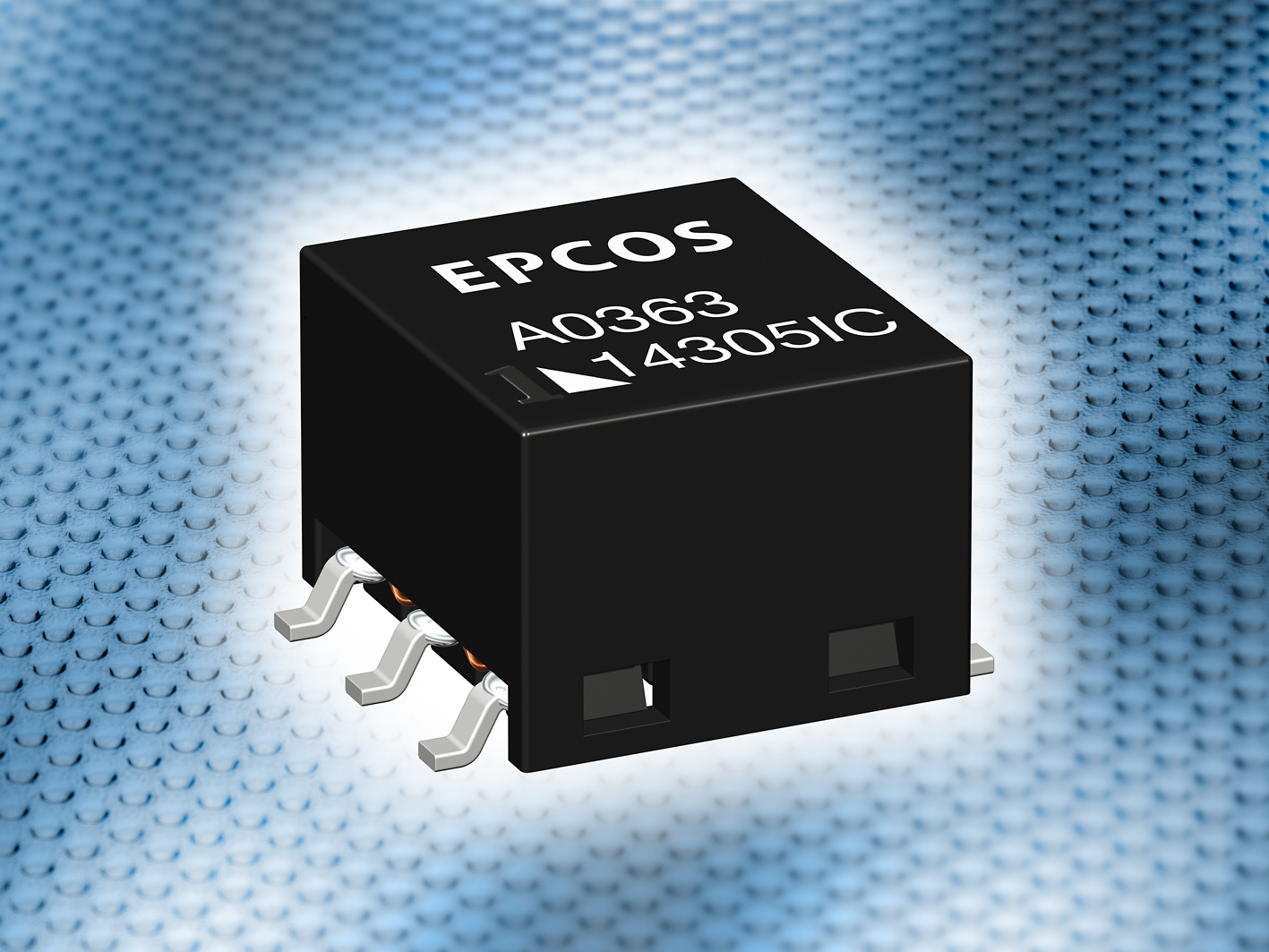

TDK Corporation presents a new series of EPCOS SMD push-pull transformers featuring compact dimensions of just 9 mm x 8 mm x 5.7 mm. Windings with center taps are located on both the primary and secondary side. The series comprises five types with different transformation ratios ranging between 1:1 and 1:3.8. This enables voltage ratios of 5 V to 5 V or 3.3 V to 12 V to be implemented. Depending on the type, the inductance values of the primary winding are between 9.5 µH and 94 µH.

The transformers of the new B82805* series are designed for a typical switching frequency of 250 kHz and operating temperature range of between -25°C and +125°C. The RoHS-compatible components are suitable, for example, for smaller switched-mode power supplies using push-pull technology and for electrical isolation in industrial automation and process engineering applications.

Main applications

  • Switch-mode power supplies using push-pull technology
  • Electrical isolation in industrial automation and process engineering

Main features and benefits

  • Compact dimensions of just 9 mm x 8 mm x 5.7 mm
  • Five types with different transformation ratios for common voltages in industrial applications
  • Typical switching frequency 250 kHz

Key data

TypeTransformation
[N1:N2:N3:N4]
Sample voltages
[V AC]
Inductance
L (1 – 2) [µH]
B82805A0363A2501:1:1.7:1.73.3:536
B82805A0773A2501:1:1.1:1.15:577
B82805A0943A2501:1:1.1:1.112:1294
B82805A0952A2501:1:3.8:3.83.3:129.5
B82805A0173A2501:1:2.6:2.65:1217


Further information on the products can be found under www.epcos.com/ifc_dc
