Film capacitors: Robust DC link capacitors

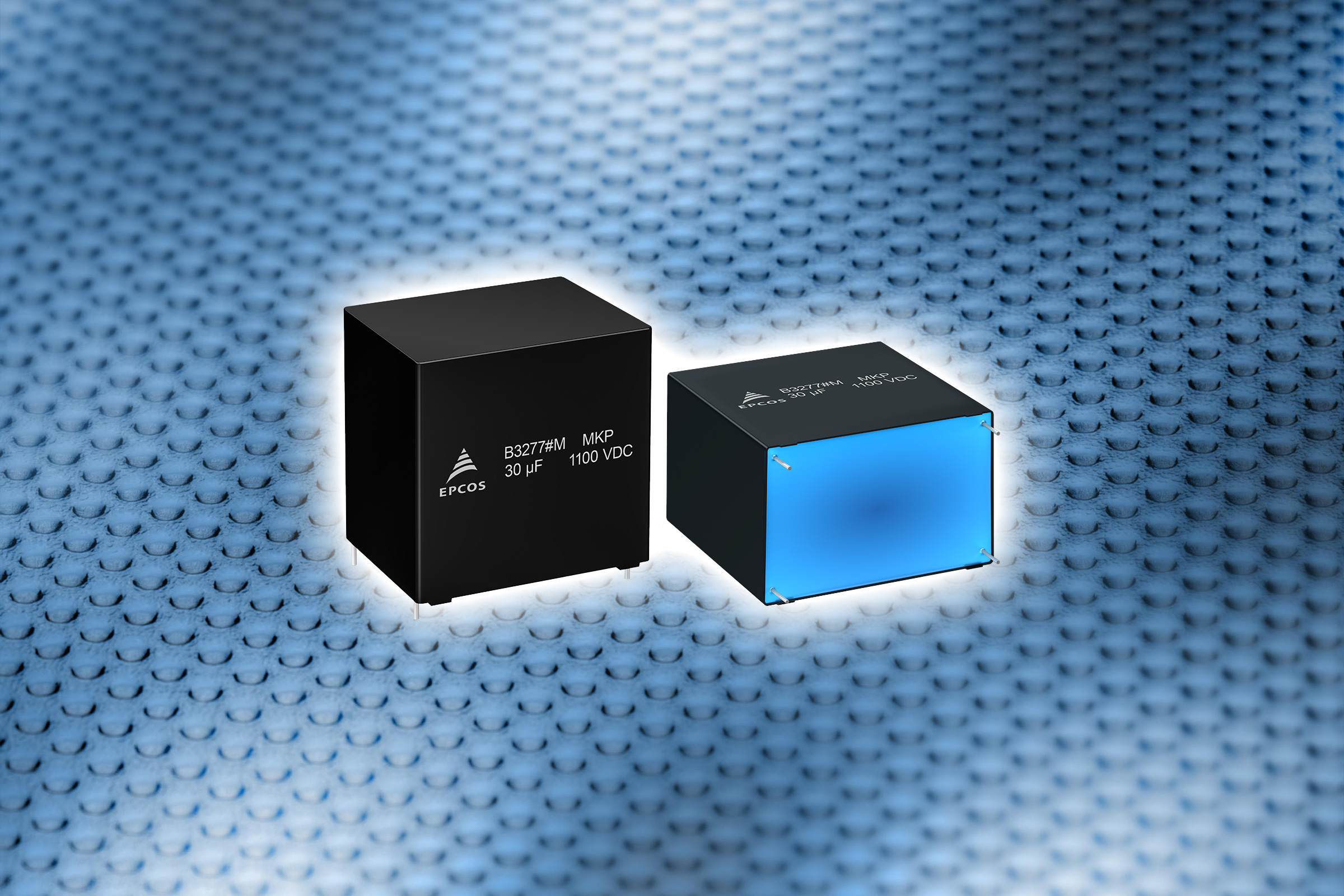

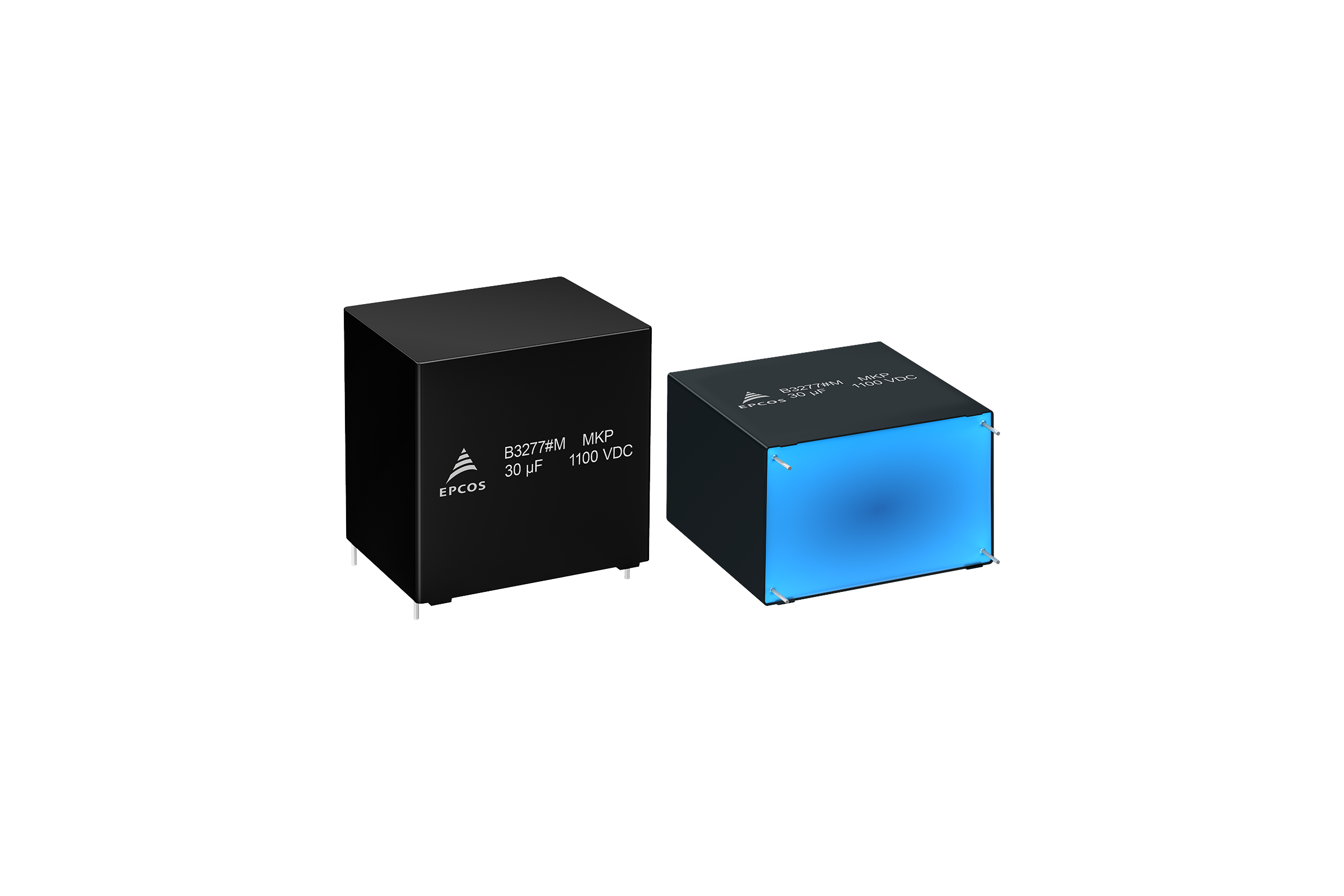

TDK Corporation has extended its portfolio of EPCOS film capacitors for DC link applications with the robust new B3277*M series. The new types are suitable for extreme environmental conditions – a fact that has been proven by means of a THB test (temperature, humidity, bias) at 85 °C, 85 percent relative humidity with a rated voltage applied for 1000 hours.

The capacitors of the new series are designed for rated voltages of between 450 V DC and 1600 V DC and offer capacitance values of between 0.33 µF and 120 µF. The maximum operating temperature of these RoHS-compatible components is 105 °C. Depending on the voltage and capacitance, the lead spacings are 27.5 mm, 37.5 mm and 52.5 mm, and a 2-pin or 4-pin version is available for each lead spacing. The service life of the self-healing capacitors is 50,000 hours at the rated voltage and an operating temperature of 85 °C.

Typical applications include DC links of converters for photovoltaic plants, as well as frequency converters and power supplies for industrial applications. The series is qualified in accordance with AEC-Q200.

Main applications

• DC links of converters for photovoltaic plants
• Frequency converters and power supplies for industrial electronics applications

Main features and benefits

• Successful completion of THB tests at 85 °C, 85 percent relative humidity and an applied rated voltage for 1000 hours.
• Wide voltage range from 450 V DC to 1600 V DC
• Wide capacitance range from 0.33 µF to 120 µF
• RoHS-compatible
• Qualified in accordance with AEC-Q200

Further information on the products can be found under www.tdk-electronics.tdk.com/de/film_mkp
