Aluminum electrolytic capacitors
April 23, 2024
TDK offers snap-in capacitors with increased compactness for general-purpose applications
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3229572/ratio4x3/210/158/598716349d03f03279de1c8dc08d2ae4/D216FD7B15AB0532E195FC46C21C4395/bild-teaser-grau-en.png","992":"/resource/image/3229572/ratio4x3/992/744/598716349d03f03279de1c8dc08d2ae4/FA8C3E027B19CA3572D335D1C9DD51BA/bild-teaser-grau-en.png","333":"/resource/image/3229572/ratio4x3/333/250/598716349d03f03279de1c8dc08d2ae4/4E3D74F04526C953054F00C4F97773DF/bild-teaser-grau-en.png","445":"/resource/image/3229572/ratio4x3/445/334/598716349d03f03279de1c8dc08d2ae4/A89FB9465B5F926E3FEEBF998EEE917A/bild-teaser-grau-en.png","290":"/resource/image/3229572/ratio4x3/290/218/598716349d03f03279de1c8dc08d2ae4/BCE4C1B9F45ACA5323B4500B23BF367C/bild-teaser-grau-en.png"}})

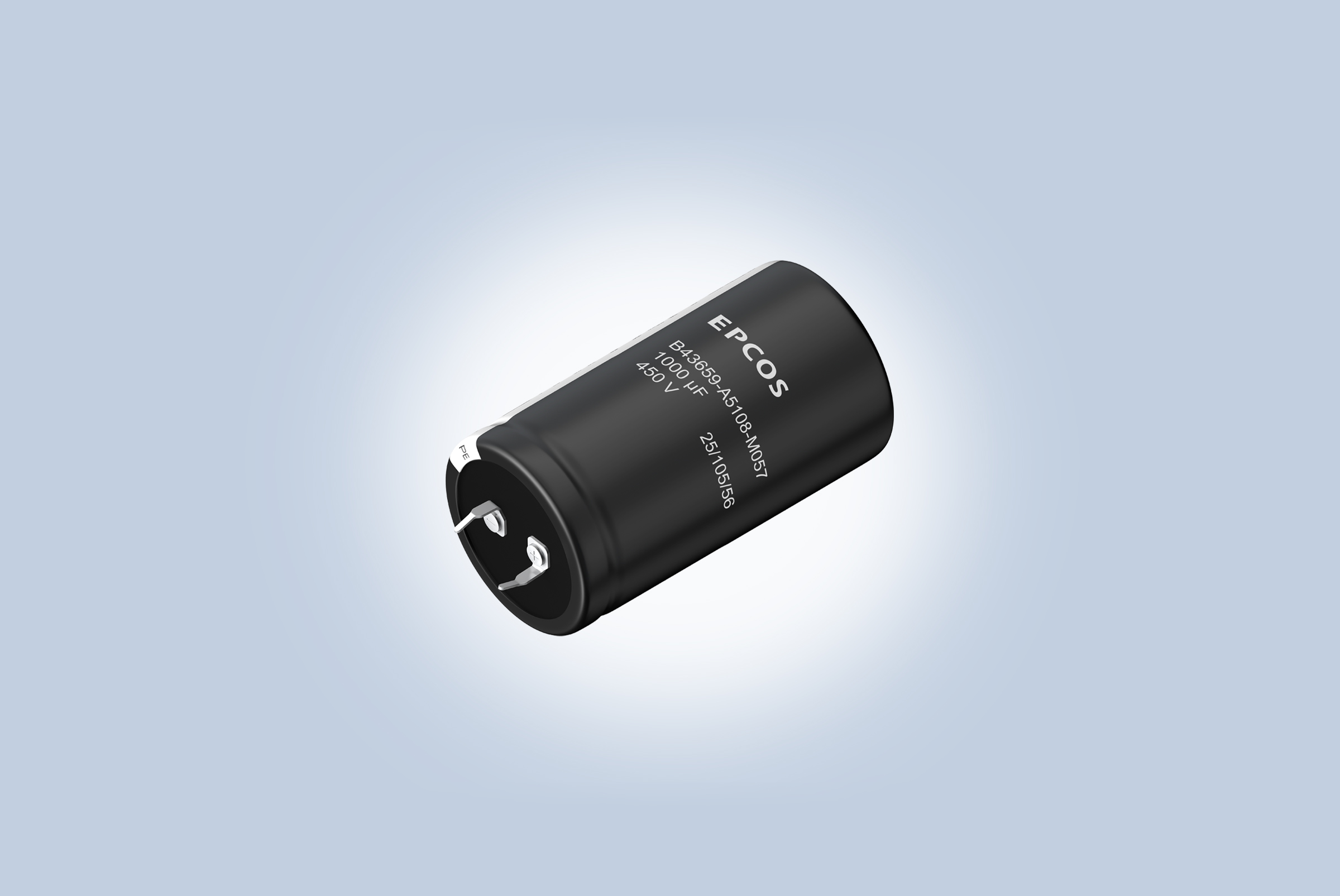

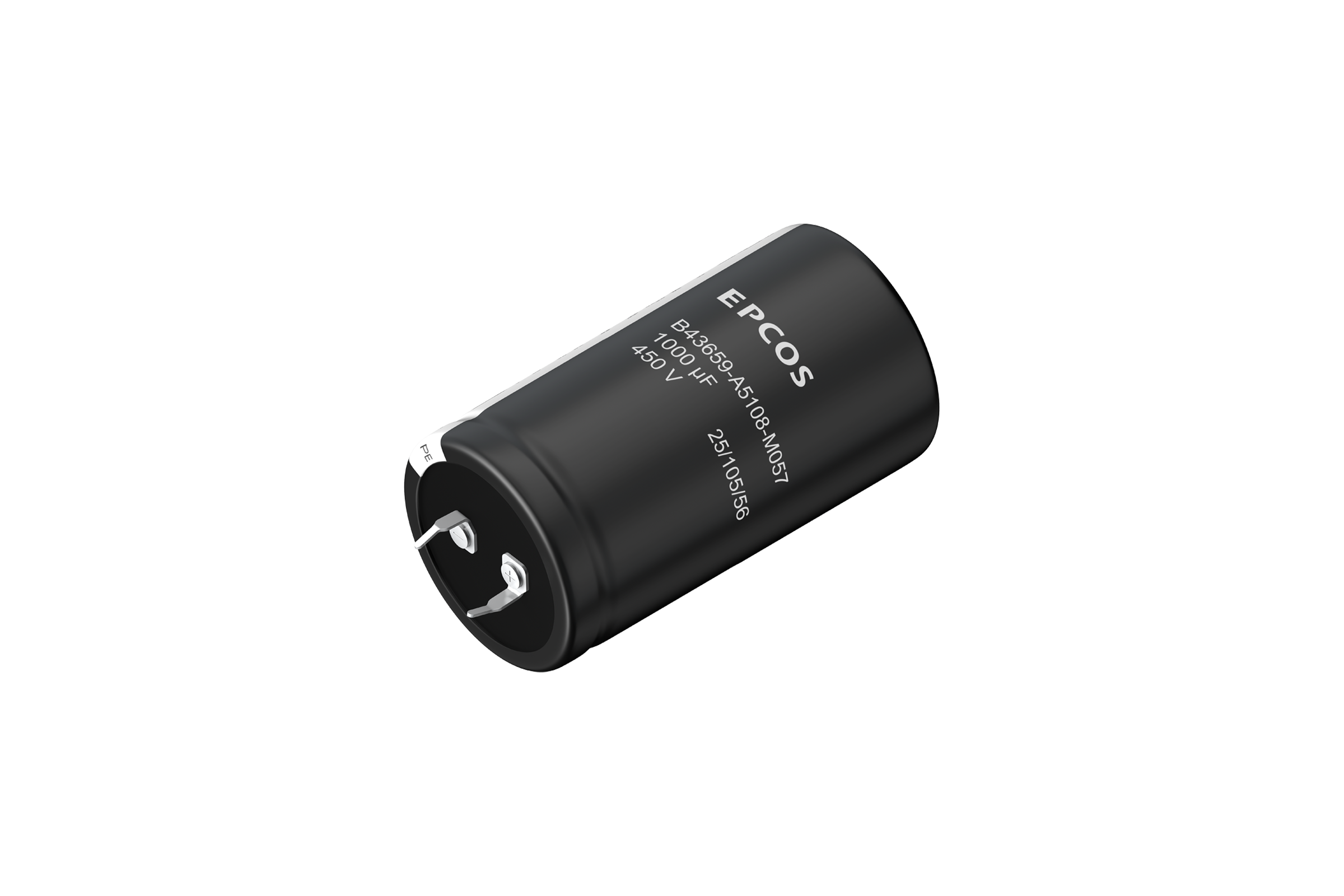

TDK Corporation (TSE:6762) announces the new EPCOS B43659 series of snap-in aluminum electrolytic capacitors. This is the next generation of ultra-compact general-purpose components for voltages of 450 V (DC) featuring an extremely high CV product. It provides the same features and serves the same applications as the previous series; however, the B43659 is much more compact. In case sizes of only 22 mm x 25 mm to 35 mm x 50 mm (D x H), these components achieve capacitances ranging from 140 µF to 1030 µF. In addition to the standard versions with 2 terminals, versions with 3 terminals are also available to ensure correct installation.
Essential performance features include a high ripple current capability of up to 7.01 A (120 Hz, +60 °C) and a service life of at least 2000 h at a maximum operating temperature of +105 °C. Accurate lifetime calculation under application-specific conditions is quick and easy with the web-based AlCap Tool (www.tdk-electronics.tdk.com/en/alcap_tool).
Due to their high reliability and compact size, these RoHS-compliant aluminum electrolytic capacitors can be used in a wide range of applications, such as switched-mode power supplies, frequency converters, uninterruptible power supplies (UPS), medical equipment, and solar inverters.
Features & Applications
Main applications
- Power supplies
- Frequency converters
- Uninterruptible power supplies
- Medical equipment
- Solar inverters
- Not for automotive applications unless otherwise specified
Main features and benefits
- Extremely high CV product, ultra-compact
- High reliability
- High ripple current capability
- Versions with 3 terminals to ensure correct insertion
- RoHS-compliant
Further information on the products can be found at www.tdk-electronics.tdk.com/en/alu_ultracompact
