TDK offers high-precision pressure transmitters with extremely low-profile design
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3059996/ratio4x3/210/158/e4f0b89d11b1adfbfc67e310f3bab198/A9562A50DF4746059E3A6773FB66B22D/bild-teaser-grau-en.png","992":"/resource/image/3059996/ratio4x3/992/744/e4f0b89d11b1adfbfc67e310f3bab198/9E0D539B42C8B2701EDD69C043347DAF/bild-teaser-grau-en.png","333":"/resource/image/3059996/ratio4x3/333/250/e4f0b89d11b1adfbfc67e310f3bab198/292A9348B75EB31533BB8C7908C10CB5/bild-teaser-grau-en.png","445":"/resource/image/3059996/ratio4x3/445/334/e4f0b89d11b1adfbfc67e310f3bab198/CF238B9C5C67558AF3EBD570E21F414B/bild-teaser-grau-en.png","290":"/resource/image/3059996/ratio4x3/290/218/e4f0b89d11b1adfbfc67e310f3bab198/74CD5DE14C8FB6A08807851DDAA4B0ED/bild-teaser-grau-en.png"}})

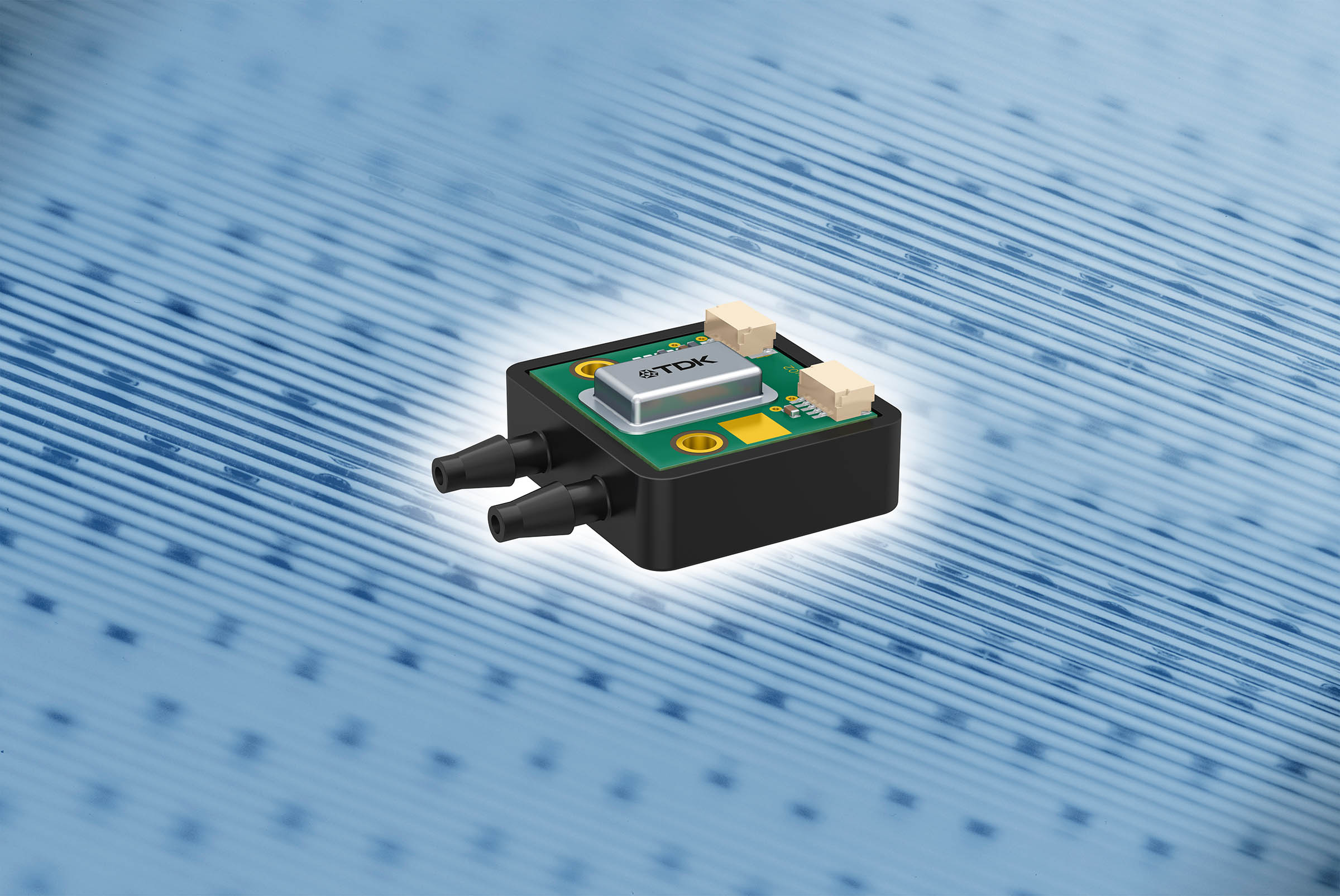

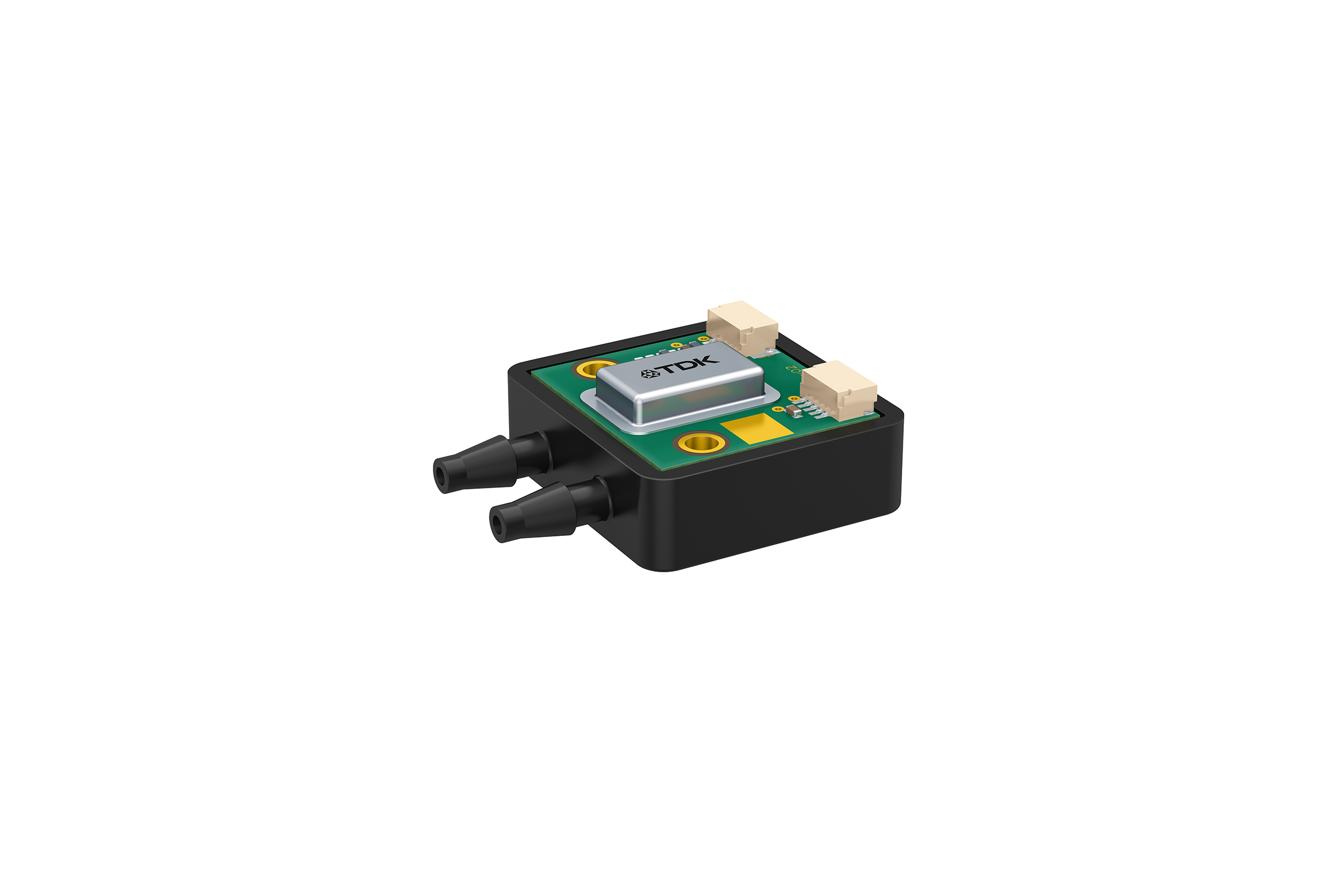

TDK Corporation (TSE: 6762) presents the AVD series of new pressure transmitters, distinguishable by their extremely low-profile design and high precision. The transmitters with B58621V* ordering codes are available in three versions for different pressure measurement ranges including 0 to 16 mbar, 0 to 100 mbar, and 0 to 7 bar.
The series offers high precision levels for low-pressure ranges, such as ±1.75% full scale (FS) with a pressure range of 100 mbar. With a 31 x 40 mm footprint, the insertion height is only 12.9 mm, which enables use even in applications in confined spaces. The compact piezoresistive pressure transmitters based on MEMS technology are suitable for the pressure measurement of air and non-aggressive gases. In addition to differential pressure measurement, they can also be used for overpressure measurement in a temperature range of -20 °C to +70 °C.
The transmitters have two self-locking pressure ports for assembling hoses with an inner diameter of 4 mm and offer an I2C (Inter-Integrated Circuit) digital output with 14-bit resolution; I2C is a standard digital interface for communicating with controls in industrial applications. An additional temperature signal output is also available via the I2C digital interface. The transmitters come equipped with two plug connectors to easily implement daisy chain systems which enable several sensors in one single network. By combining these benefits, the sensor systems are ideally suited for demanding industrial applications such as pressure level measurement, flow control, and filter monitoring. Applications include pumps and compressors, pneumatic systems, building management systems, and more within Industry 4.0 markets.
Main fields of application
- Pumps and compressors
- Pneumatic systems
- Building management
- Industry 4.0
Main features and benefits
- Pressure ranges of 0 to 16 mbar, 0 to 100 mbar, and 0 to 7 bar
- High level of precision of up to ±1% full scale (FS)
- I2C digital output with a 14-bit resolution
- Extremely low insertion height of 12.9 mm
Further information on the products can be found under www.tdk-electronics.tdk.com/en/pressure_sensor_transmitters
