TDK offers compact, rugged pressure transmitter for industrial applications
![Bild_Teaser_grau_en]({"ratio4x3":{"210":"/resource/image/3102536/ratio4x3/210/158/8e348b9985be7d8e02c7757f8b2bc0b5/C50A3671D35F5F1B40B9F7A6F0A4E11C/bild-teaser-grau-en.png","992":"/resource/image/3102536/ratio4x3/992/744/8e348b9985be7d8e02c7757f8b2bc0b5/DC659EB398D2B150FA04BDE3556399D1/bild-teaser-grau-en.png","333":"/resource/image/3102536/ratio4x3/333/250/8e348b9985be7d8e02c7757f8b2bc0b5/87709469495F9BB7837C4B7AC4B5FD81/bild-teaser-grau-en.png","445":"/resource/image/3102536/ratio4x3/445/334/8e348b9985be7d8e02c7757f8b2bc0b5/648580C763A2C254832A15E28BF9B582/bild-teaser-grau-en.png","290":"/resource/image/3102536/ratio4x3/290/218/8e348b9985be7d8e02c7757f8b2bc0b5/67392DA3545795E0BDB2BFD297F17920/bild-teaser-grau-en.png"}})

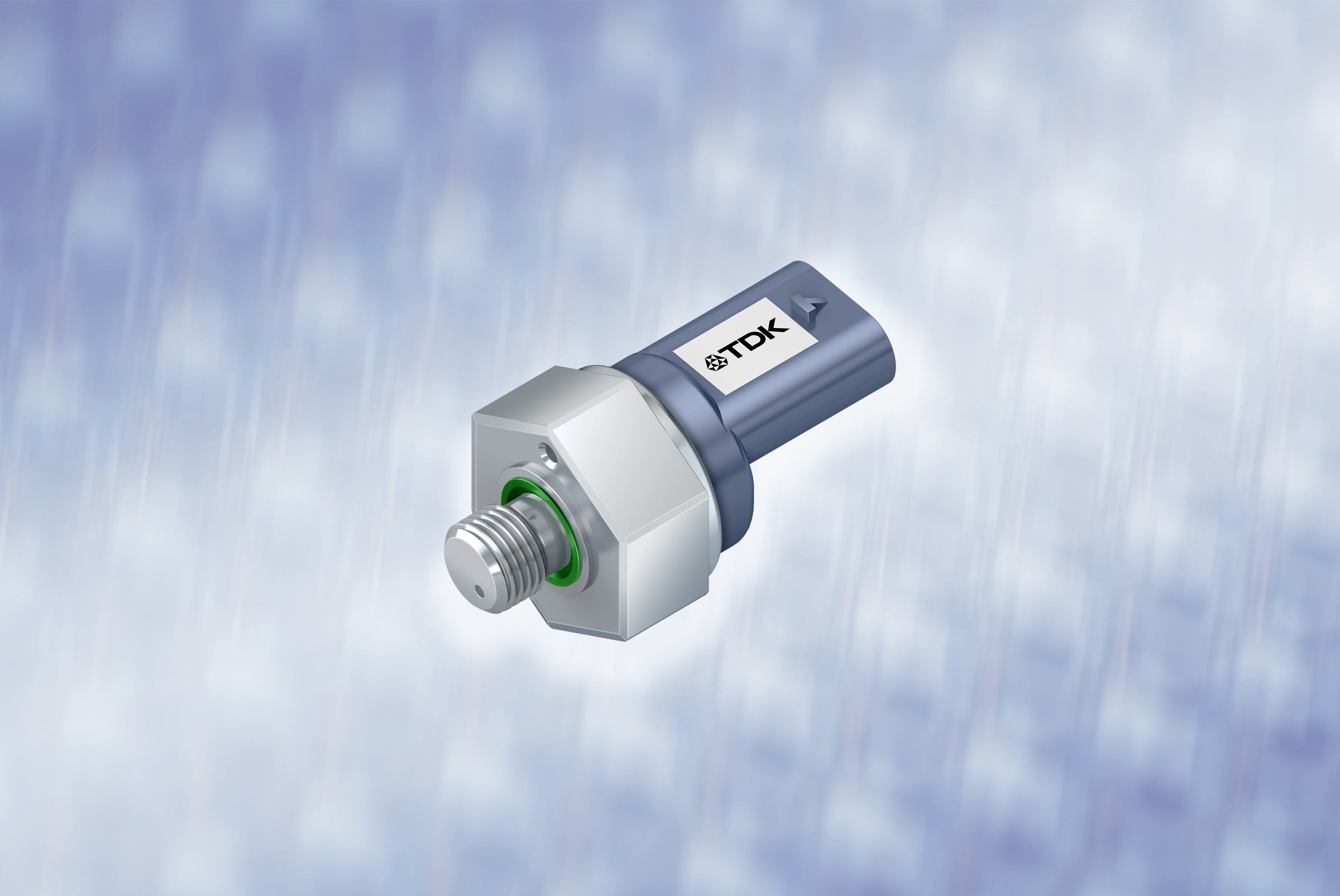

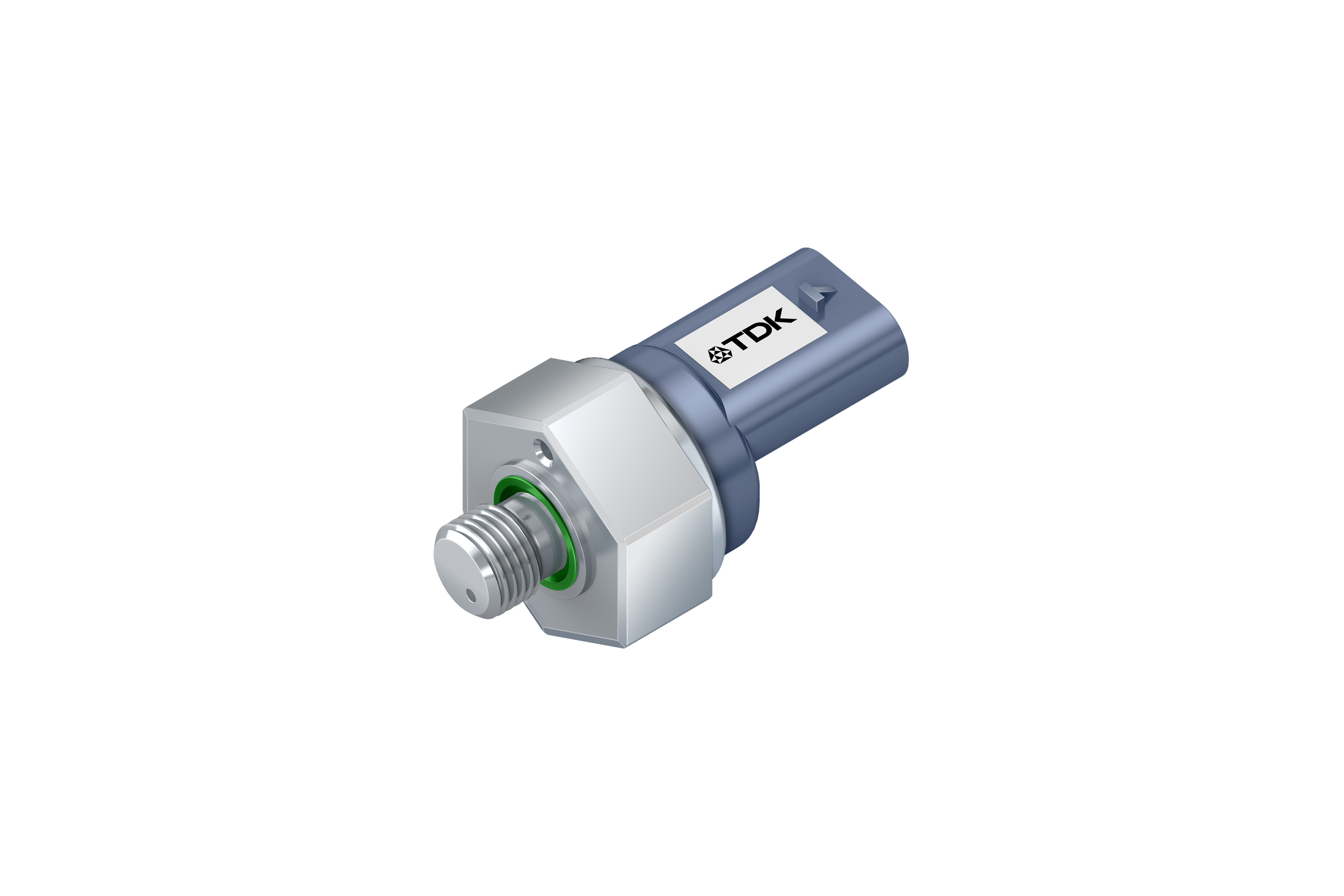

TDK Corporation (TSE:6762) presents the compact, rugged B58620F3800B768 AFA pressure transmitter for screw mounting for a wide range of industrial applications. It is designed for a pressure range of 1 bar to 11 bar and temperatures from -20 °C to +125 °C. The dimensions are only 48 x 27 x 24 mm. The new transmitter offers a high measuring accuracy of ±0.5 percent FS (full scale) in the temperature range from +20 °C to +80 °C.
The piezoresistive pressure transmitter is based on MEMS technology with a robust stainless steel pressure port. It is suitable for pressure measurement of non-freezing media such as fuel, diluted acids or contaminated air. The absolute pressure transmitter has a 0.4 mm diameter pressure port with an M10 thread and is easy to mount. The integrated signal conditioner compensates for non-linearity and temperature errors. It provides a precise, calibrated analog output signal in the range of 0.5 V to 4.5 V with high immunity to electromagnetic interference (EMI).
Typical applications include industrial process control, food packaging systems, pump monitoring, and pneumatic systems.
Features & Applications
Main applications
- Industrial process control
- Food packaging systems
- Pump monitoring
- Pneumatic systems
Main features and benefits
- Pressure range from 1 bar to 11 bar
- High measuring accuracy of ±0.5 percent FS (full scale)
- Integrated signal conditioning for compensation of non-linearity and temperature error
- Analog output signal from 0.5 V to 4.5 V
Further information on the products can be found under www.tdk-electronics.tdk.com/en/pressure_sensor_transmitters.
